Over 30years of experience in Ni-Cd, Ni-Mh and Li-ion battery cells and packs. Manufacturing Exit Sign and Emergency Lighting Batteries to client needs. We supply batteries for all exit signs and emergency lighting requirements.
Visit the battery shop or Call 0411537459 to discuss your battery needs.
Exit Sign and Emergency Lighting Batteries
Catalog for download – coming soon.
| High Temperature Battery Pack Specification Table | ||||||
| Code | Photo | Type | Description | Voltage | Capacity | Packing |

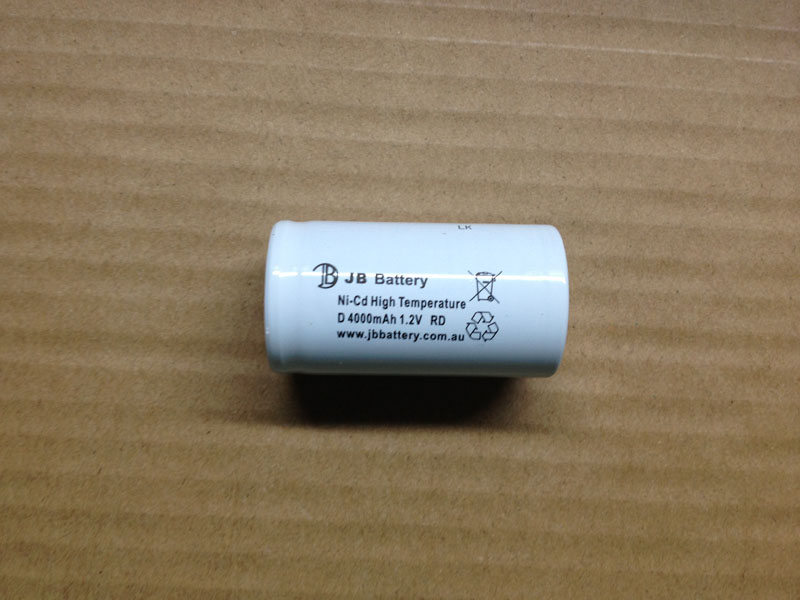

| CD40H |
CD40H | D | Single Cell D4000mAh | 1.2V | 4,000mAh | 100pcs/ctn |
| CD45H |
| D | Single Cell D4500mAh | 1.2V | 4,500mAh | 100pcs/ctn |

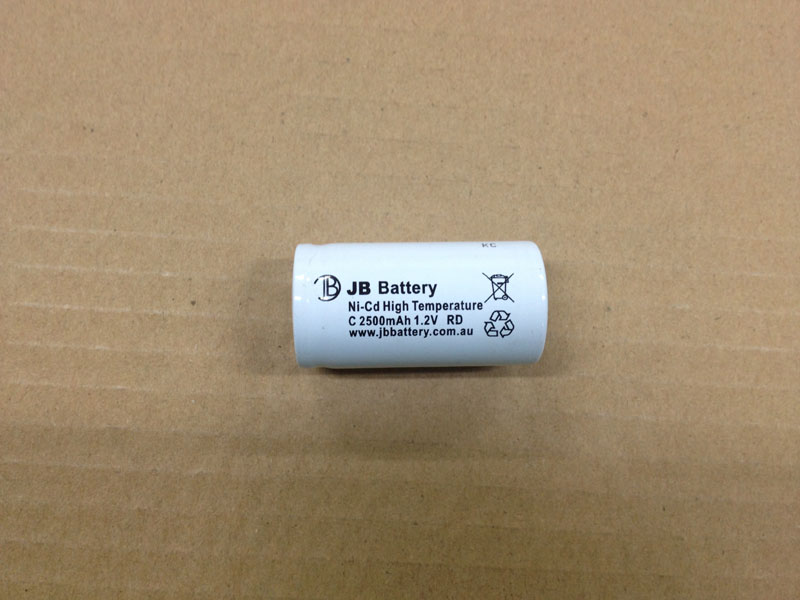

| CC25H |
CC25H | C | Single Cell C2500mAh | 1.2V | 2,500mAh | 200pcs/ctn |

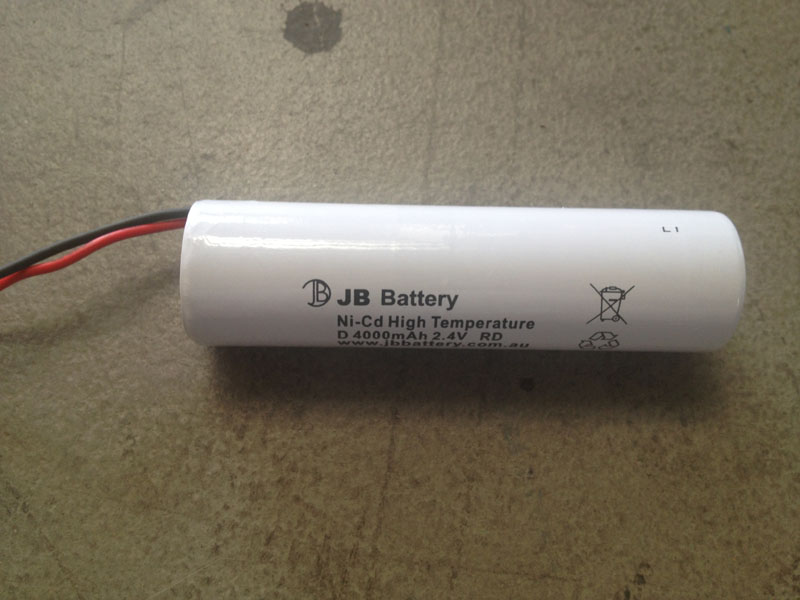

| C2D40H-E |
C2D40H-E | D | 2xD4000mAh Stick | 2.4V | 4,000mAh | 50pks/ctn |
| C2D40H-S |
C2D40H-S | D | 2xD4000mAh Side by Side (S/S) | 2.4V | 4,000mAh | 50pks/ctn |

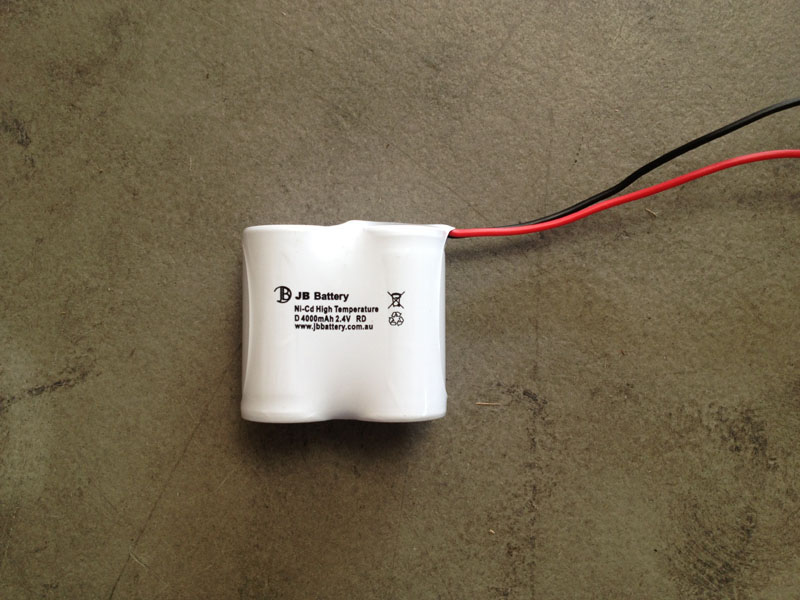

| C3D40H-E |
C3D40H-E | D | 3xD4000mAh Stick | 3.6V | 4,000mAh | 40pks/ctn |

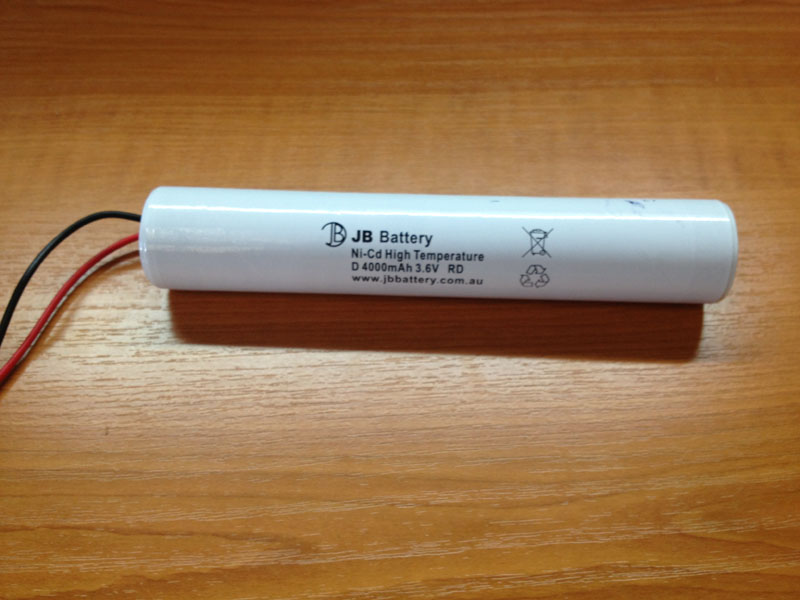

| C3D40H-S |
C3D40H-S | D | 3xD4000mAh S/S | 3.6V | 4,000mAh | 40pks/ctn |

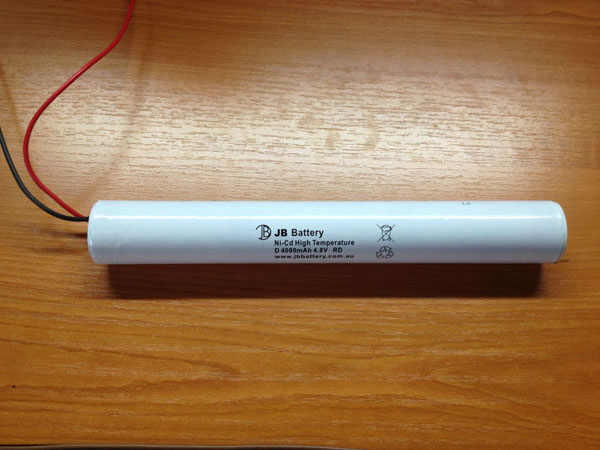

| C4D40H-E |
C4D40H-E | D | 4xD4000mAh Stick | 4.8V | 4,000mAh | 25pks/ctn |

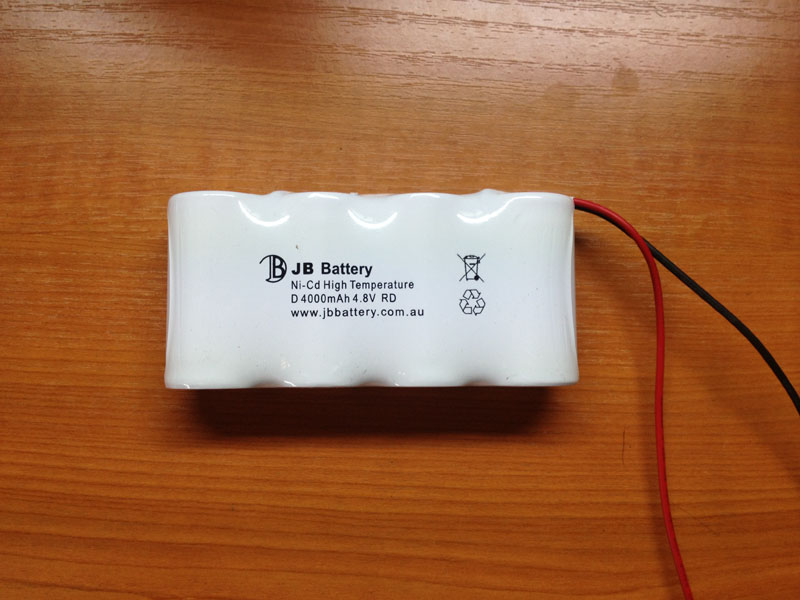

| C4D40H-S |
C4D40H-S | D | 4xD4000mAh S/S | 4.8V | 4,000mAh | 25pks/ctn |

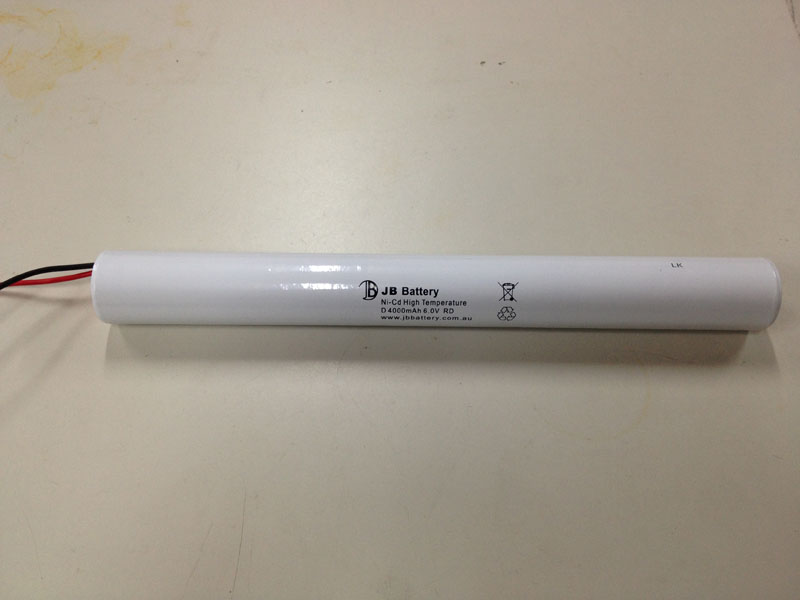

| C5D40H-E |
C5D40H-E | D | 5xD4000mAh Stick | 6.0V | 4,000mAh | 25pks/ctn |

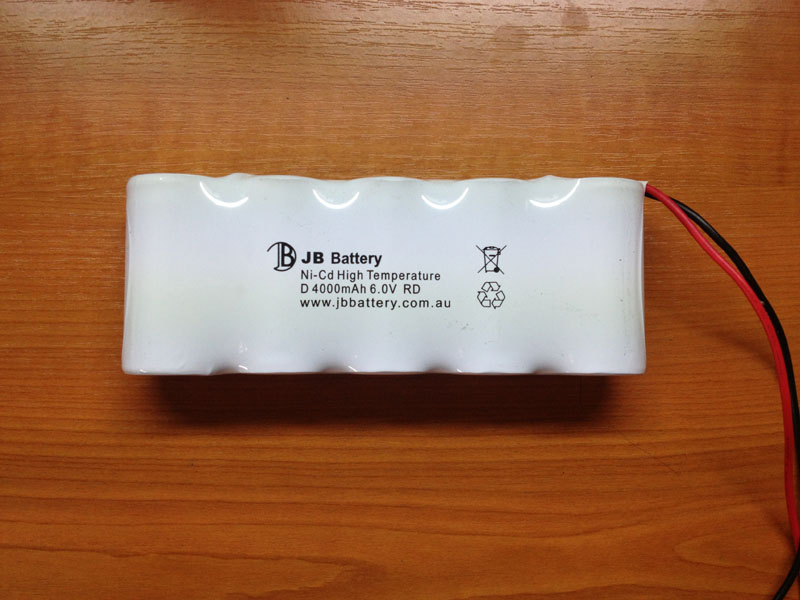

| C5D40H-S |
C5D40H-S | D | 5xD4000mAh S/S | 6.0V | 4,000mAh | 25pks/ctn |

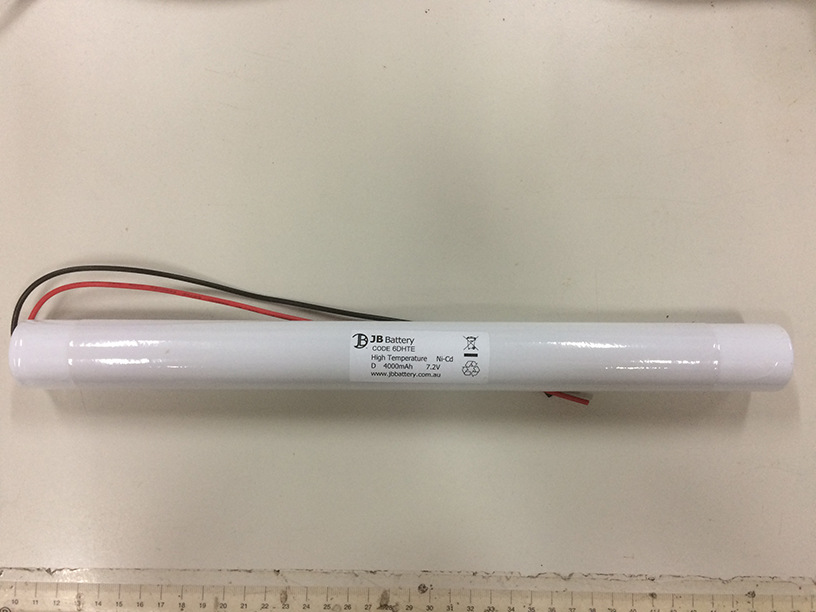

| C6D40H-E |
C6D40H-E | D | 6xD4000mAh Stick | 7.2V | 4,000mAh | 20pks/ctn |

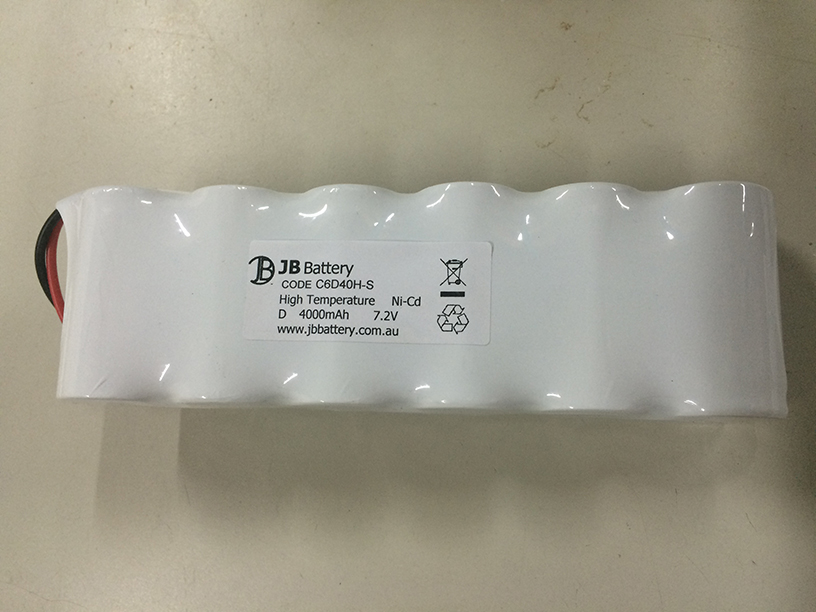

| C6D40H-S |
C6D40H-S | D | 6xD4000mAh S/S | 7.2V | 4,000mAh | 15pks/ctn |

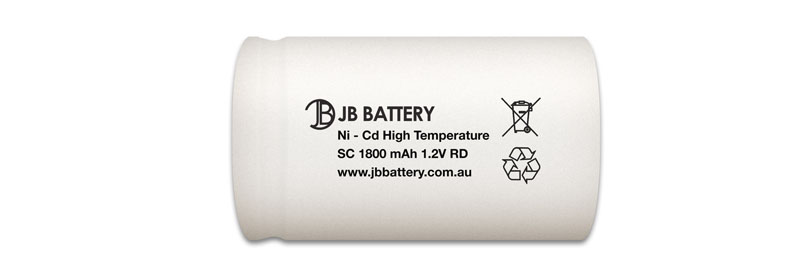

| CSC18H |
CSC18H | SC | Single Cell SC1800mAh | 1.2V | 1,800mAh | 300pcs/ctn |

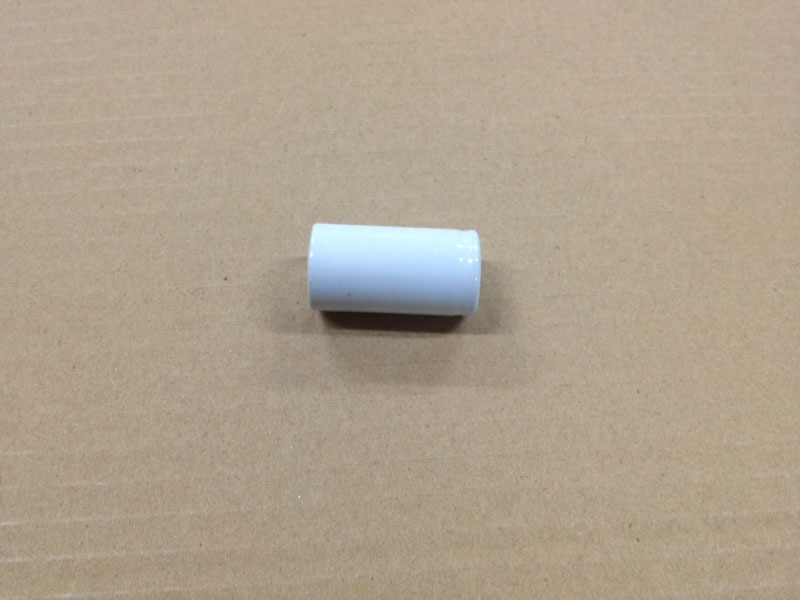

| CSC15H |
CSC15H | SC | Single Cell SC1500mAh | 1.2V | 1,500mAh | 300pcs/ctn |

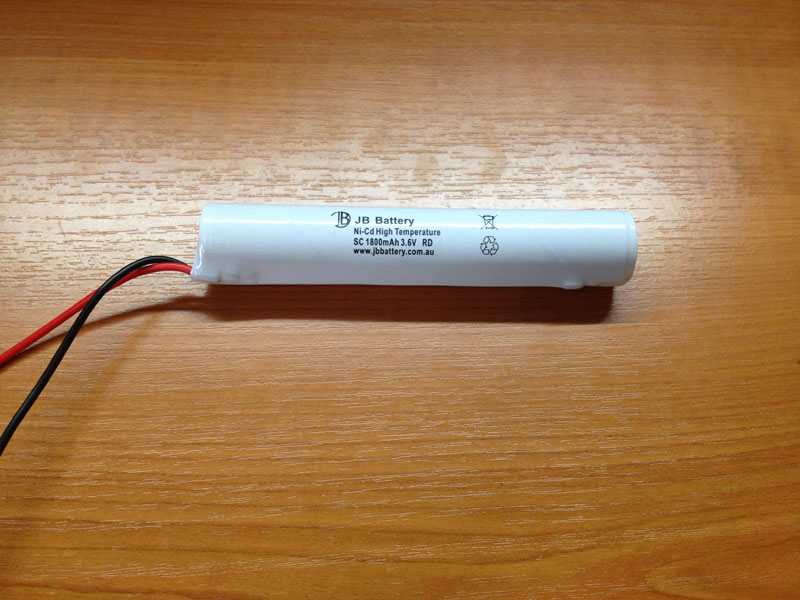

| C3SC18H-E |
C3SC18H-E | SC | 3xSC1800mAh Stick | 3.6V | 1,800mAh | 100pkc/ctn |

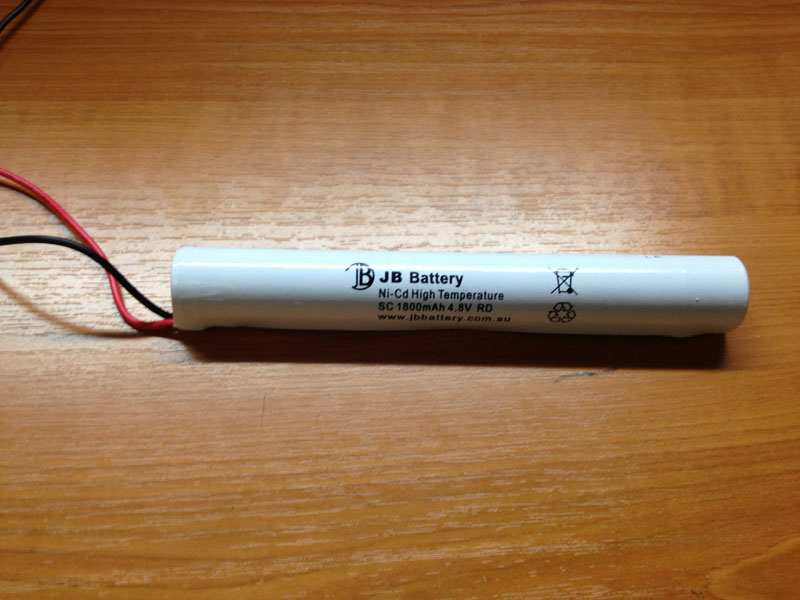

| C4SC18H-E |
C4SC18H-E | SC | 4xSC1800mAh Stick | 4.8V | 1,800mAh | 50pks/ctn |

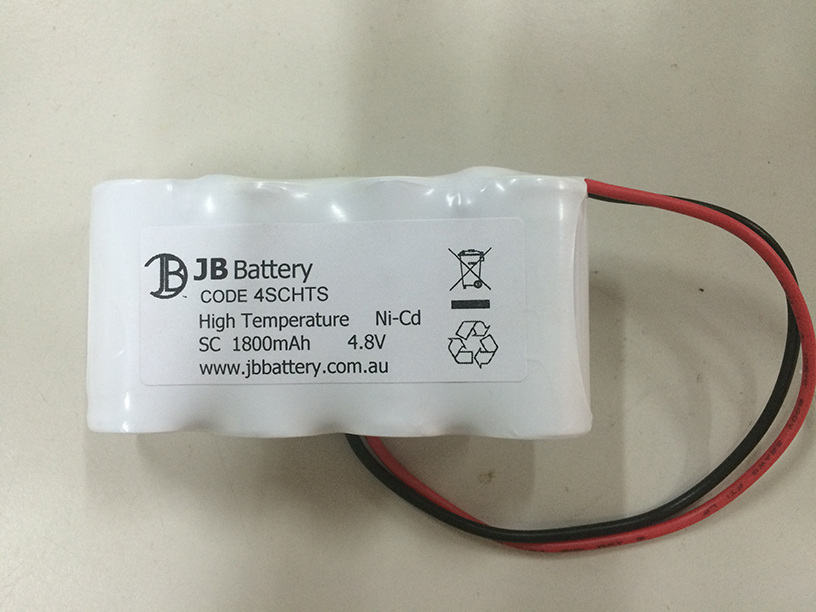

| C4SC18H-S |
C4SC18H-S | SC | 4xSC1800mAh S/S | 4.8V | 1,800mAh | 50pks/ctn |

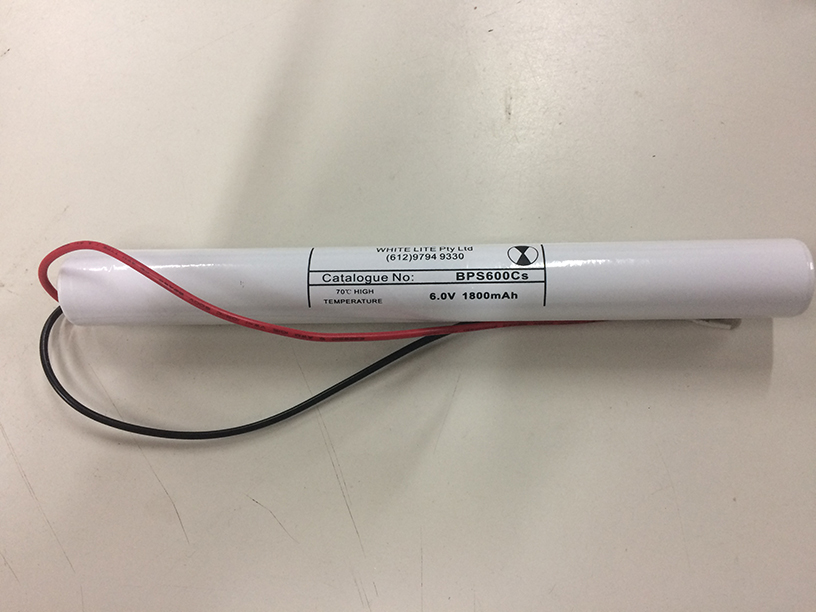

| C5SC18H-E |
C5SC18H-E | SC | 5xSC1800mAh Stick | 6.0V | 1,800mAh | 50pks/ctn |

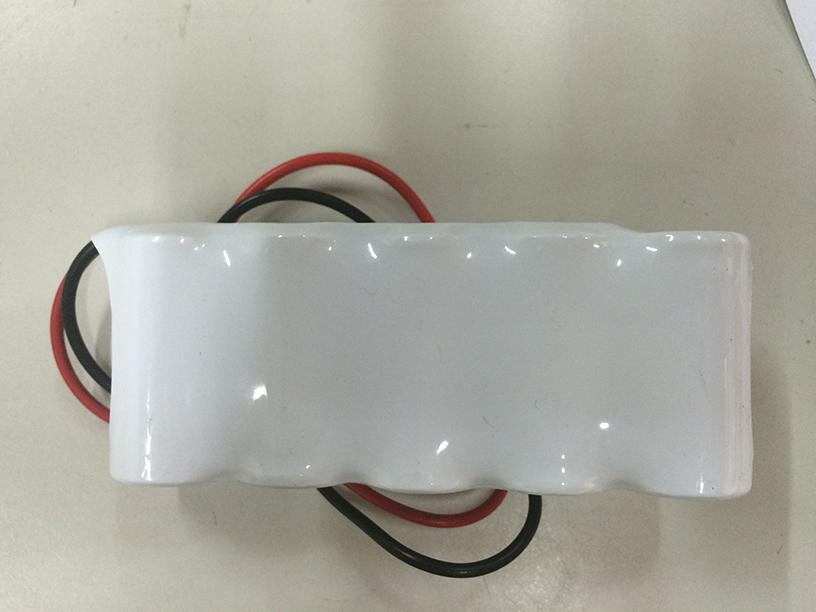

| C5SC18H-S |
C5SC18H-S | SC | 5xSC1800mAh S/S | 6.0V | 1,800mAh | 50pks/ctn |

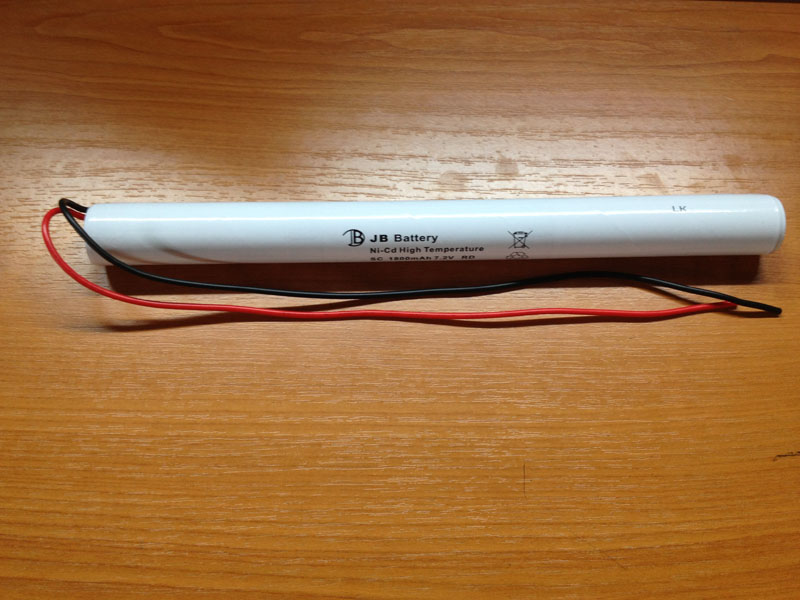

| C6SC18H-E |
C6SC18H-E | SC | 6xSC1800mAh Stick | 7.2V | 1,800mAh | 50pks/ctn |

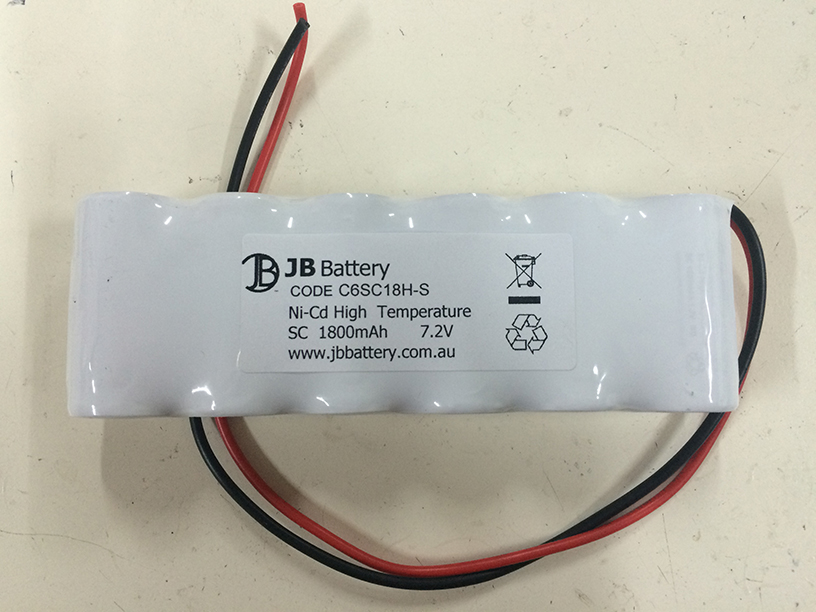

| C6SC18H-S |
C6SC18H-S | SC | 6xSC1800mAh S/S | 7.2V | 1,800mAh | 50pks/ctn |
| C7SC18H-E | SC | 7xSC1800mAh Stick | 8.4V | 1,800mAh | 30pks/ctn | |
| C7SC18H-S |
C6SC18H-S | SC | 7xSC1800mAh S/S | 8.4V | 1,800mAh | 30pks/ctn |

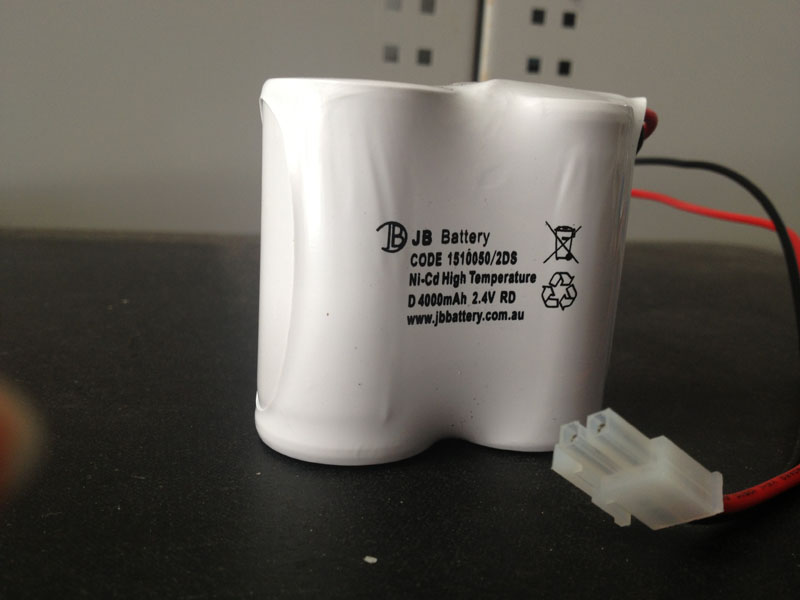

| C2D40H-SC1 |
C2D40H-SC1 | D | 2xD4000mAh S/S+Plug | 2.4V | 4,000mAh | 100pks/ctn |

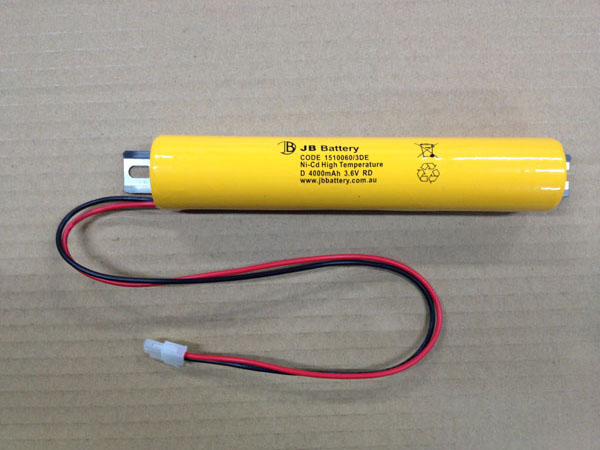

| C3D40H-EC1B9 |
C3D40H-EC1B9 | D | 3xD4000mAh Stick+Plug+Bracket | 3.6V | 4,000mAh | 40pks/ctn |

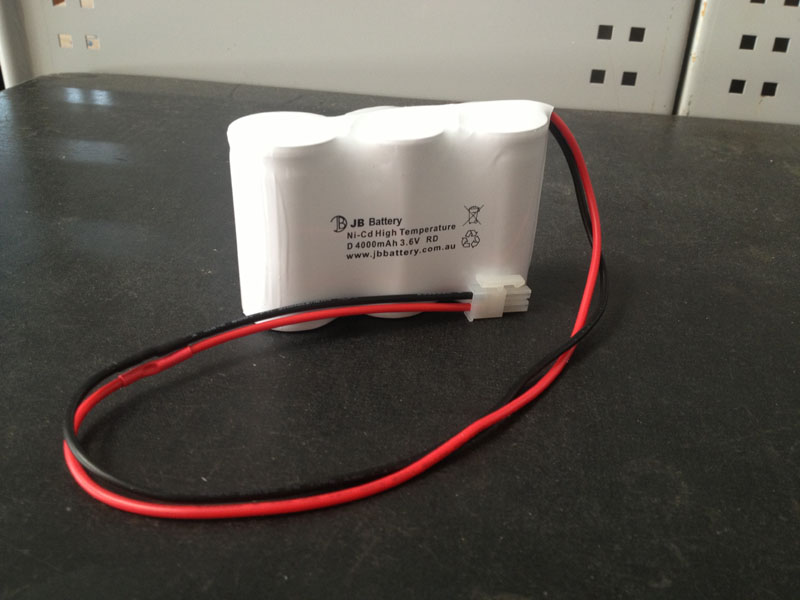

| C3D40H-SC1 |
C3D40H-SC1 | D | 3xD4000mAh S/S+Plug | 3.6V | 4,000mAh | 40pks/ctn |

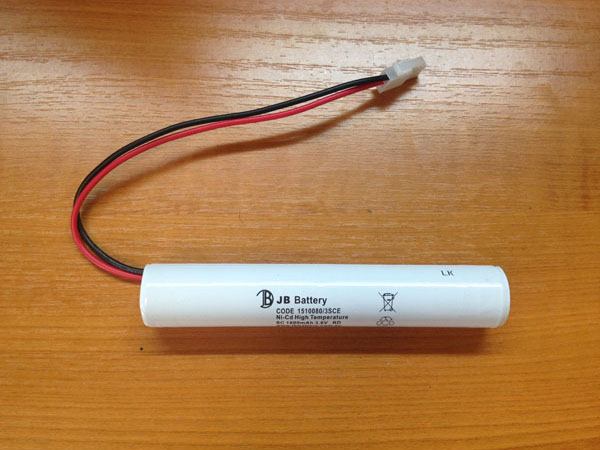

| C3SC18H-EC1 |
C3SC18H-EC1 | SC | 3xSC1800mAh Stick+Plug | 3.6V | 1,800mAh | 100pks/ctn |

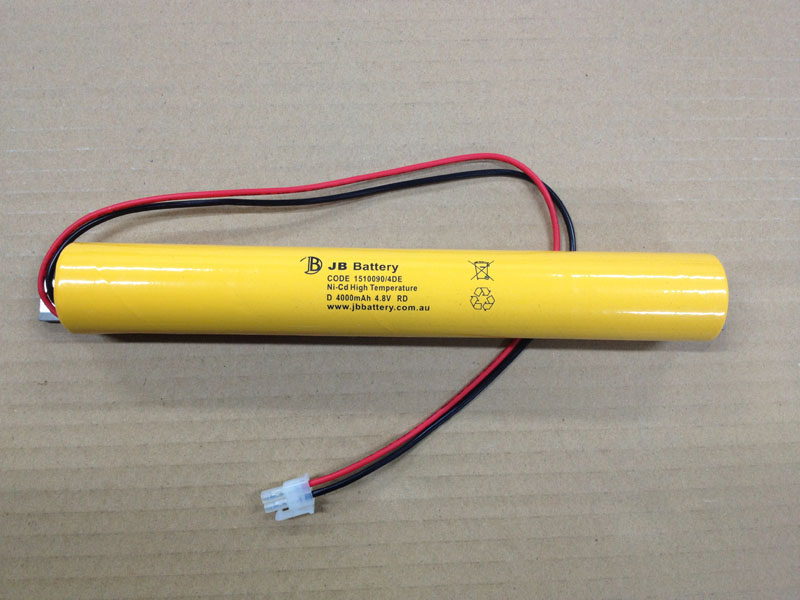

| C4D40H-EC1B8 |
C4D40H-EC1B8 | D | 4xD4000mAh Stick+Plug+Bracket | 4.8V | 4,000mAh | 25pks/ctn |

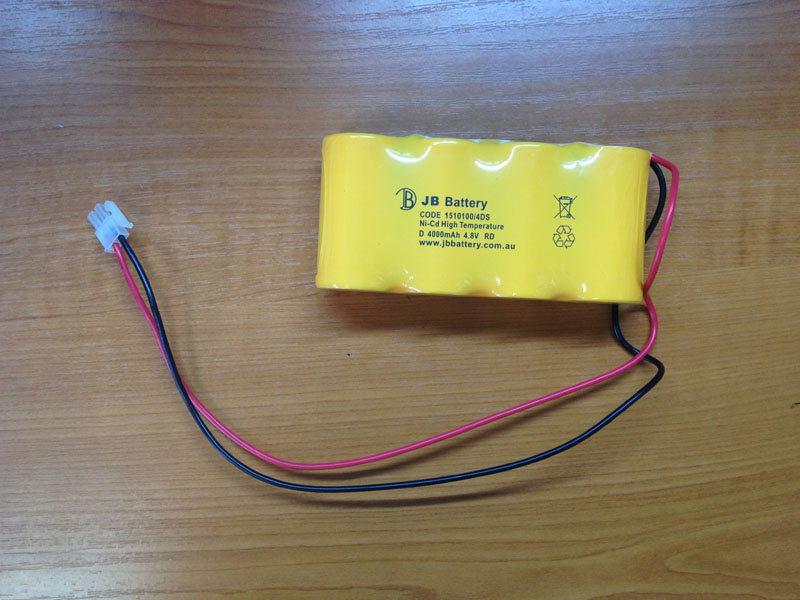

| C40D40H-SC1 |
C40D40H-SC1 | D | 4xD4000mAh S/S+Plug | 4.8V | 4,000mAh | 25pks/ctn |
| C5D40H-EC1B7 |
| D | 5xD4000mAh Stick+Plug+Bracket | 6.0V | 4,000mAh | 20pks/ctn |

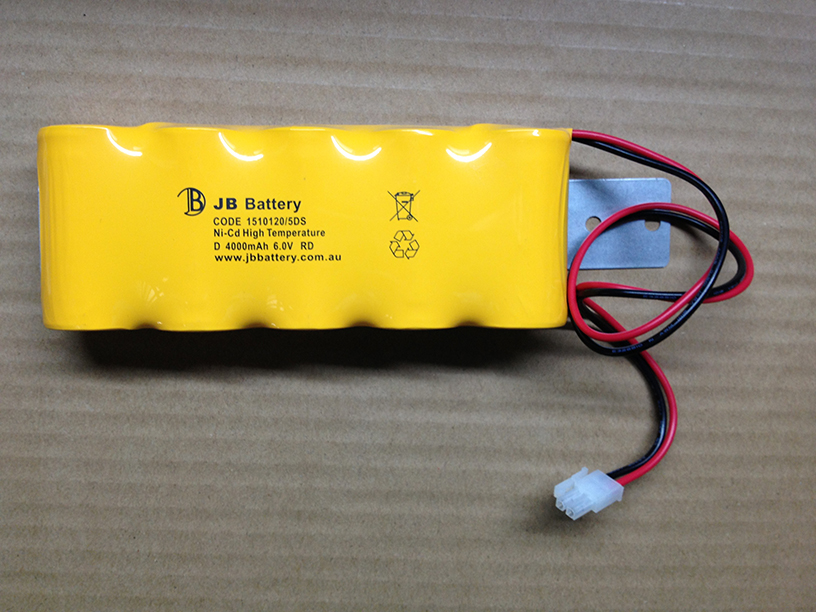

| C5D40H-SC1B6 |
C5D40H-SC1B6 | D | 5xD4000mAh S/S+Plug+Bracket | 6.0V | 4,000mAh | 20pks/ctn |

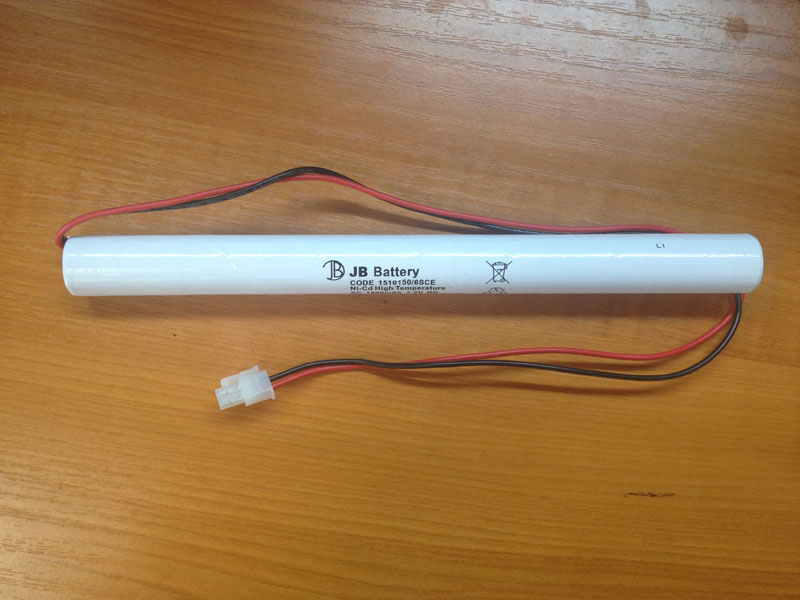

| C6SC18H-EC1 |
C6SC18H-EC1 | SC | 6xSC1800mAh Stick+Plug | 7.2V | 1,800mAh | 50pks/ctn |

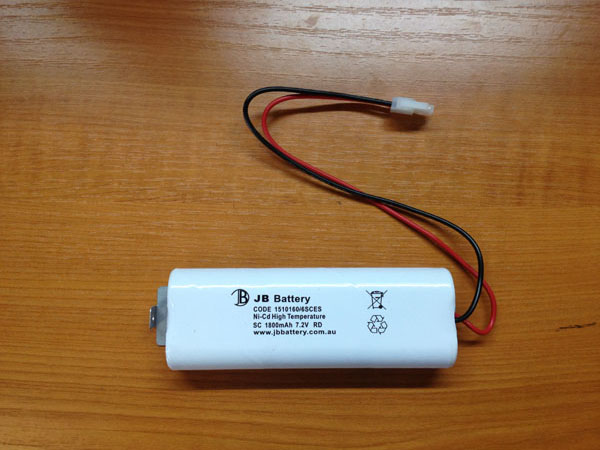

| C6SC18H-EC1B10 |
C6SC18H-EC1B10 | SC | 2x3xSC1800mAh+Plug+Bracket | 7.2V | 1,800mAh | 50pks/ctn |

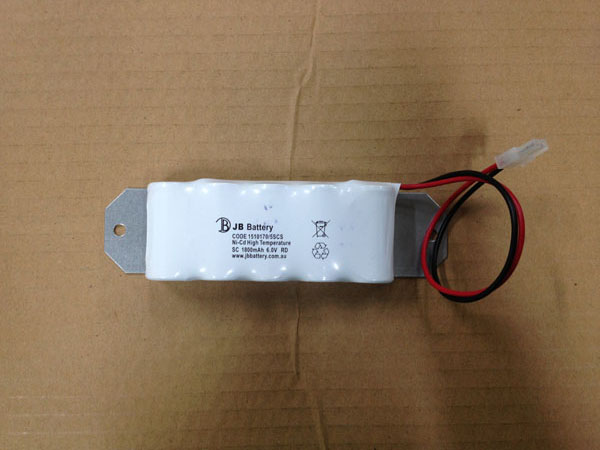

| C5SC18H-SC1B3 |
C5SC18H-SC1B3 | SC | 5xSC1800mAh S/S+Plug+Bracket | 6.0V | 1,800mAh | 50pks/ctn |

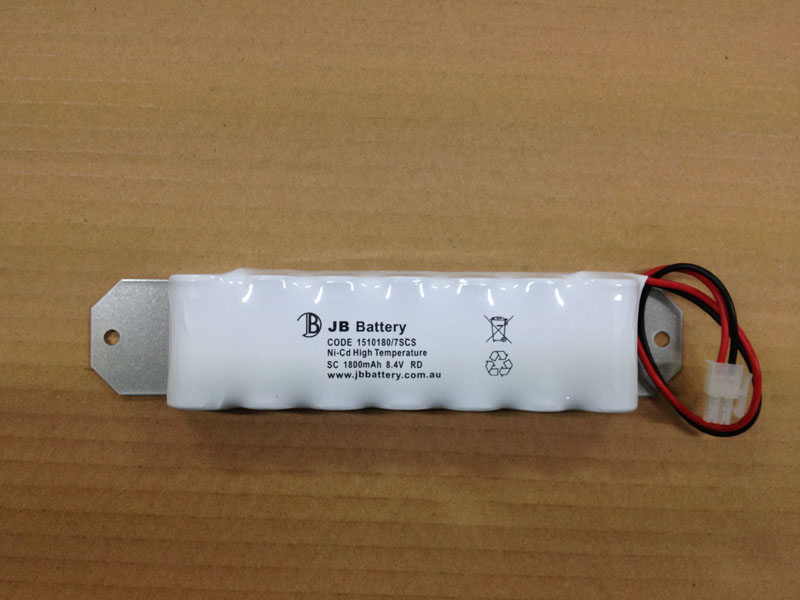

| C7SC18H-SC1B2 |
C7SC18H-SC1B2 | SC | 7xSC1800mAh S/S+Plug+Bracket | 8.4V | 1,800mAh | 30pks/ctn |

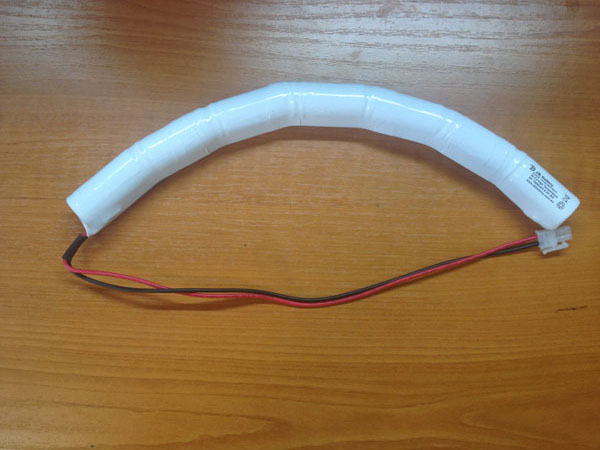

| C7SC18H-CC1 |
C7SC18H-CC1 | SC | 7xSC1800mAh Curved+Plug | 8.4V | 1,800mAh | 30pks/ctn |

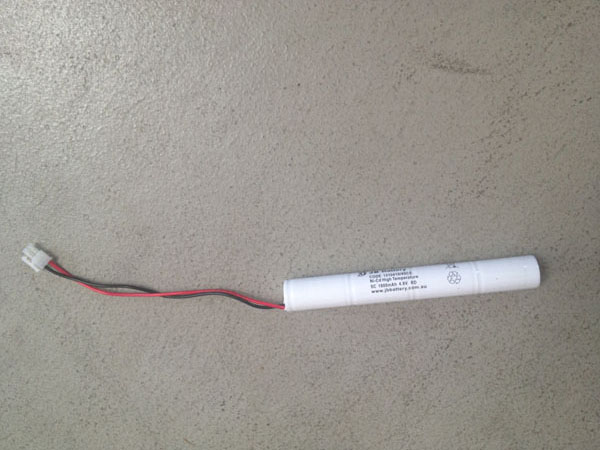

| C4SC18H-EC1 |
C4SC18H-EC1 | SC | 4xSC1800mAh Stick+Plug | 4.8V | 1,800mAh | 50pks/ctn |

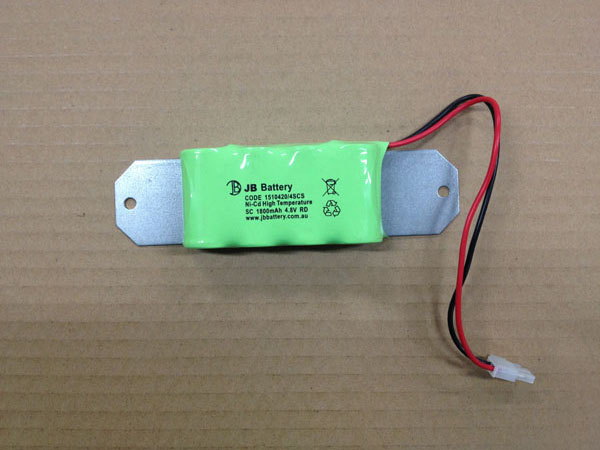

| C4SC18H-SC1B3 |
C4SC18H-SC1B3 | SC | 4xSC1800mAh S/S+Plug+Bracket | 4.8V | 1,800mAh | 50pks/ctn |

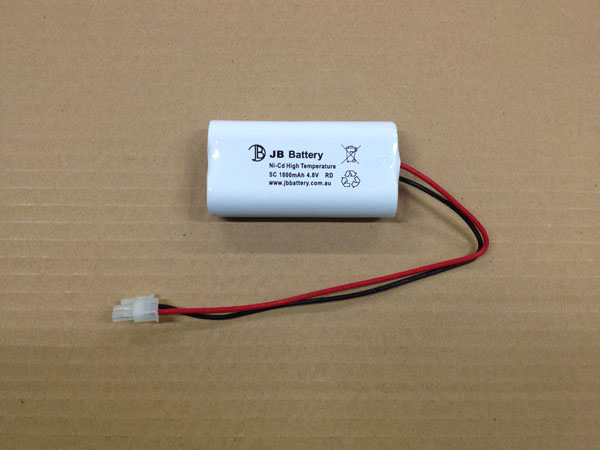

| C4SC18H-BC1 |
C4SC18H-BC1 | SC | 2+2xSC1800mAh+Plug | 4.8V | 1,800mAh | 50pks/ctn |
| C4AA80H-S | AA | 4xAA800mAh S/S | 4.8V | 800mAh | 100pks/ctn | |
| C4AA80H-E |
| AA | 4xAA800mAh Stick | 4.8V | 800mAh | 100pks/ctn |

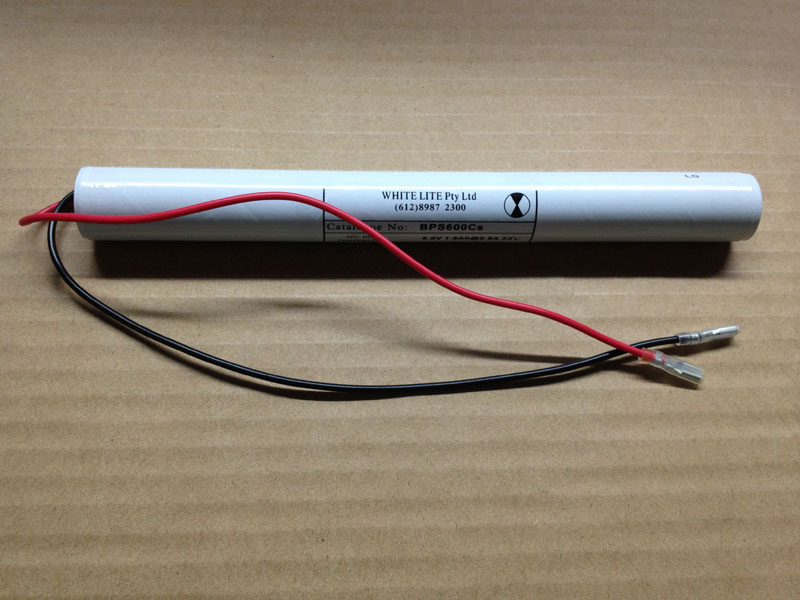

| C5SC18H-EC6 |
C5SC18H-EC6 | SC | 5xSC1800mAh Stick+Plug | 6.0V | 1,800mAh | 50pks/ctn |

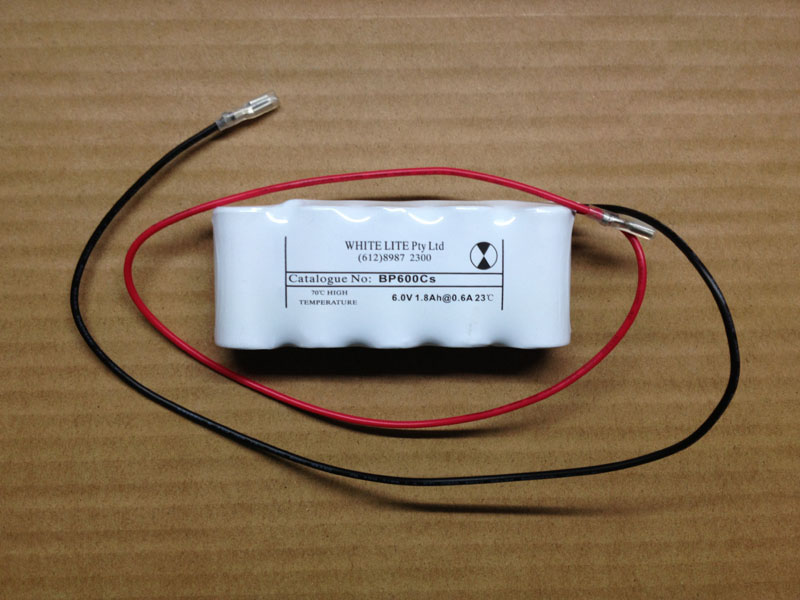

| C5SC18H-SC6 |
C5SC18H-SC6 | SC | 5xSC1800mAh S/S+Plug | 6.0V | 1,800mAh | 50pks/ctn |

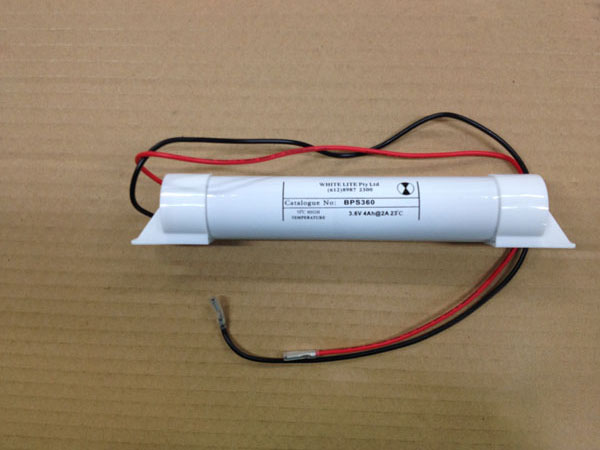

| C3D40H-EC6K2 |
C3D40H-EC6K2 | D | 3xD4000mAh Stick+Plug+Cap | 3.6V | 4,000mAh | 40pks/ctn |

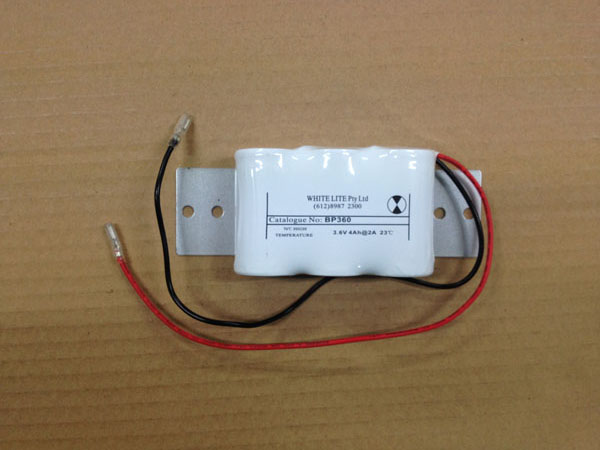

| C3D40H-SC6B1 |
C3D40H-SC6B1 | D | 3xD4000mAh S/S+Plug+Plate | 3.6V | 4,000mAh | 40pks/ctn |

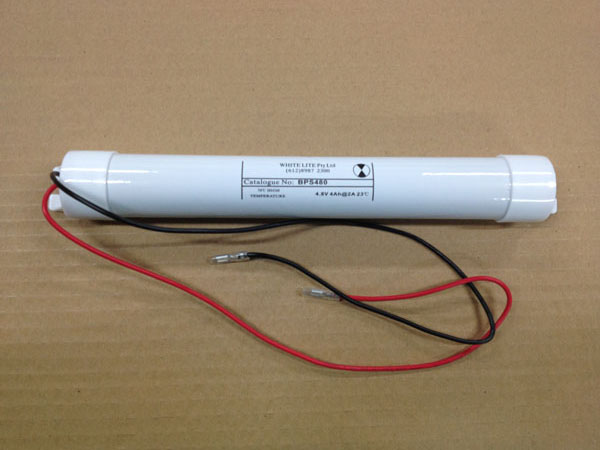

| C4D40H-EC6K2 |
C4D40H-EC6K2 | D | 4xD4000mAh Stick+Plug+Cap | 4.8V | 4,000mAh | 25pks/ctn |

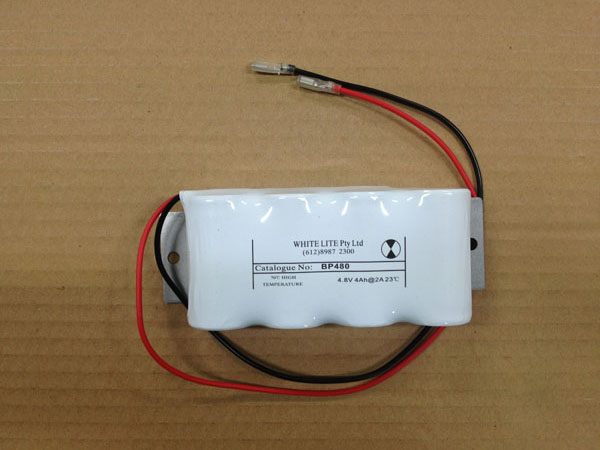

| C4D40H-SC6B1 |
C4D40H-SC6B1 | D | 4xD4000mAh S/S+Plug+Plate | 4.8V | 4,000mAh | 25pks/ctn |

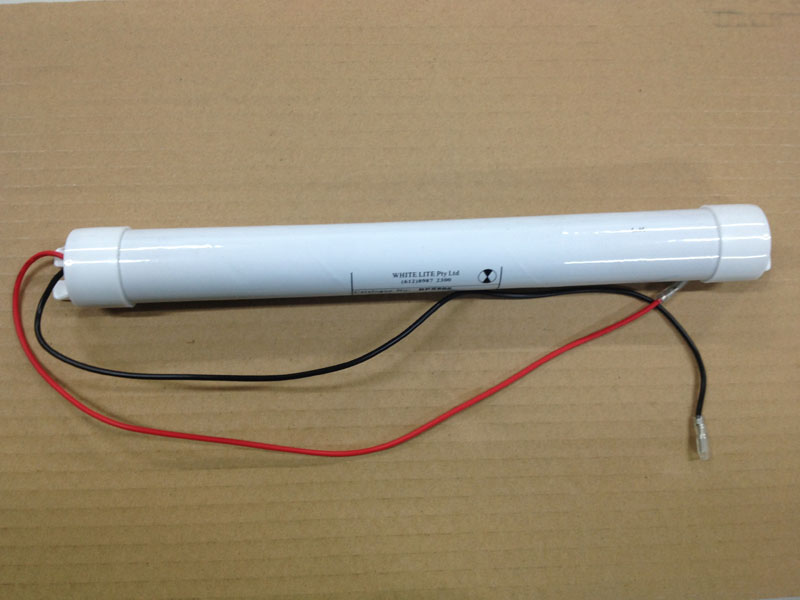

| C5D40H-EC6K2 |
C5D40H-EC6K2 | D | 5xD4000mAh Stick+Plug+Cap | 6.0V | 4,000mAh | 25pks/ctn |

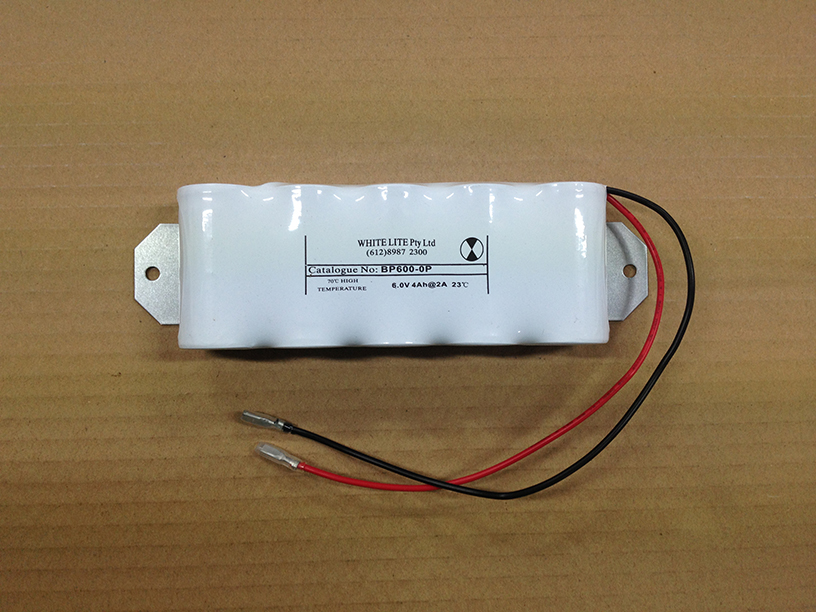

| C5D40H-SC6B2 |
C5D40H-SC6B2 | D | 5xD4000mAh S/S+Plug+Plate | 6.0V | 4,000mAh | 25pks/ctn |

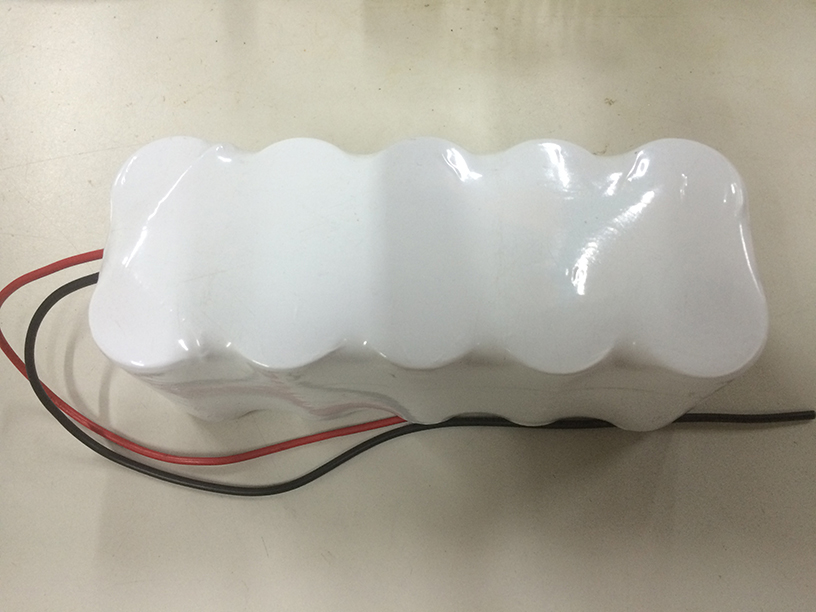

| C10D40H-F |
C10D40H-F | D | 5+5xD4000mAh S/S | 12.0V | 4,000mAh | 10pks/ctn |

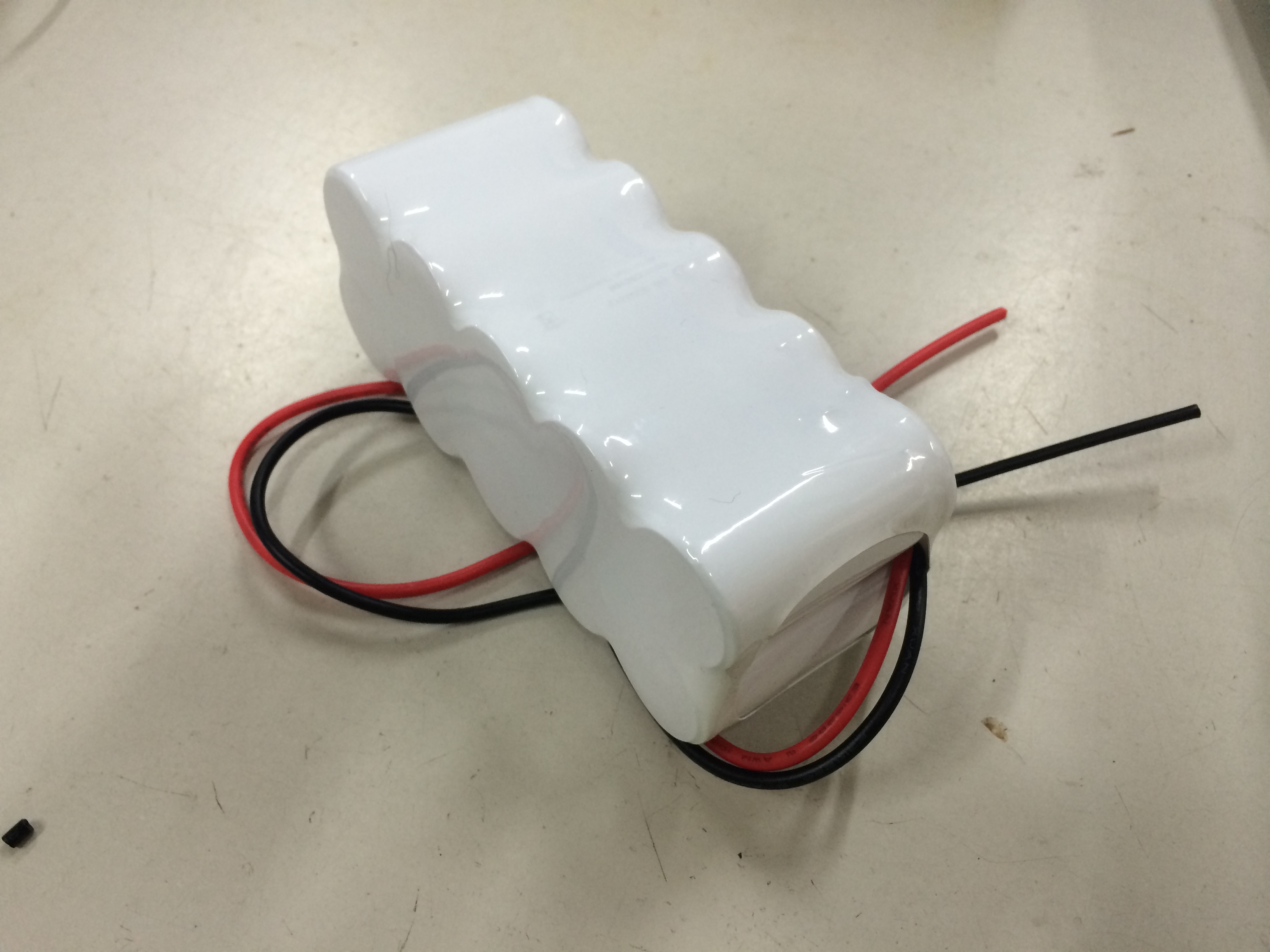

| C10SC18H-F |
C10SC18H-F | SC | 2x5xSC1800mAh S/S | 12.0V | 1,800mAh | 20pks/ctn |

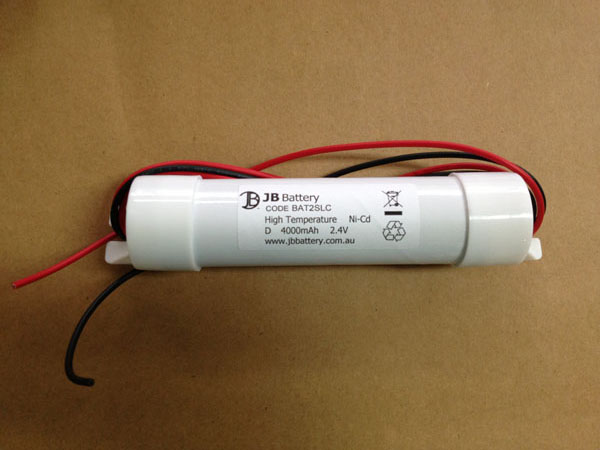

| C2D40H-EK2 |
C2D40H-EK2 | D | 2xD4000mAh Stick+Cap | 2.4V | 4,000mAh | 50pks/ctn |

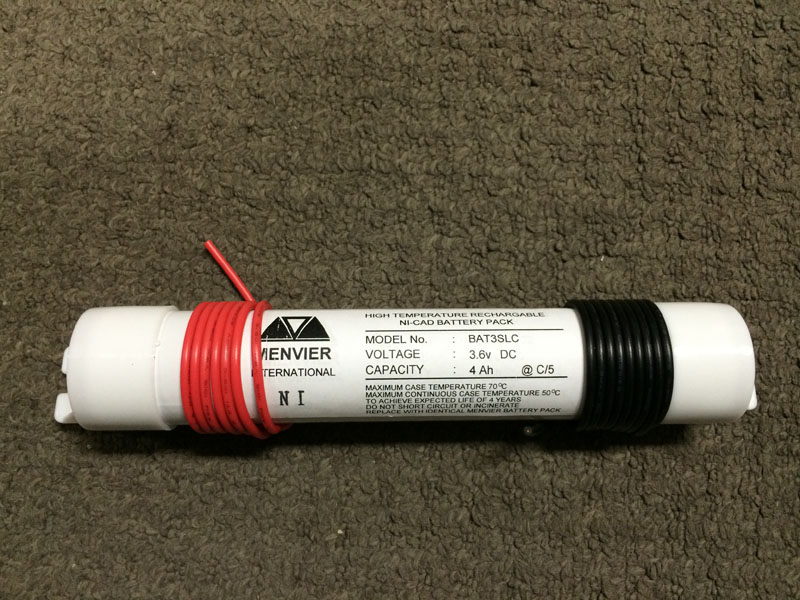

| C3D40H-EK2 |
C3D40H-EK2 | D | 3xD4000mAh Stick+Cap | 3.6V | 4,000mAh | 40pks/ctn |

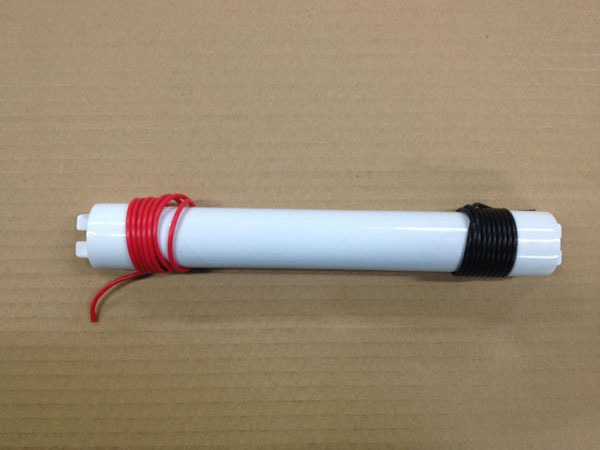

| C4D40H-EK2 |
C4D40H-EK2 | D | 4xD4000mAh Stick+Cap | 4.8V | 4,000mAh | 25pks/ctn |

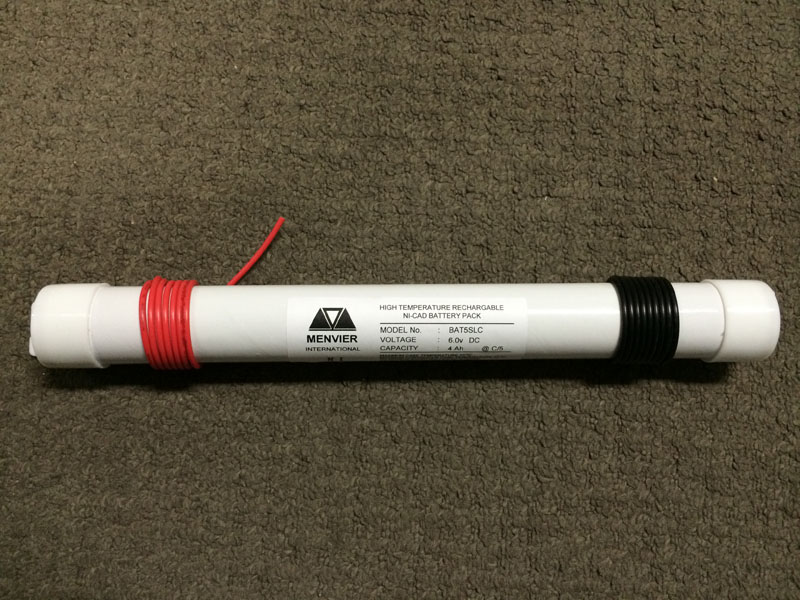

| C5D40H-EK2 |
C5D40H-EK2 | D | 5xD4000mAh Stick+Cap | 6.0V | 4,000mAh | 25pks/ctn |

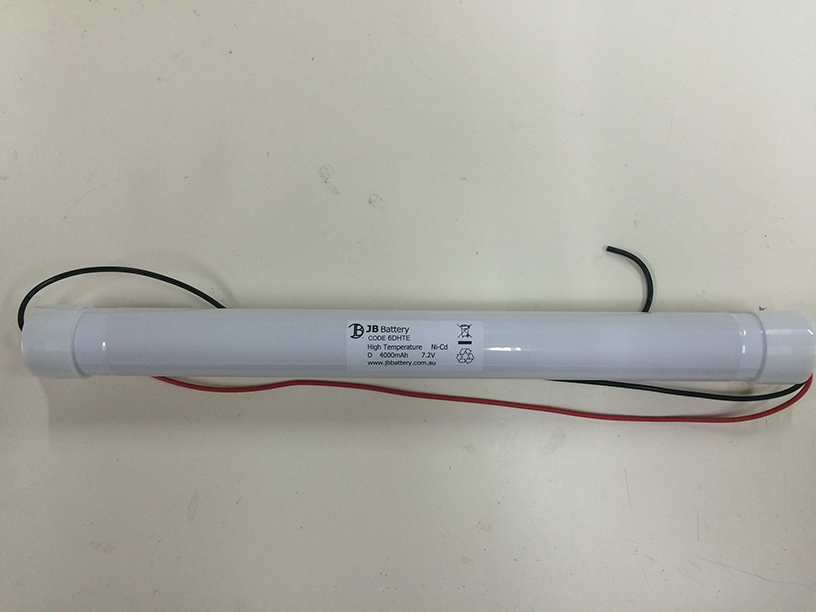

| C6D40H-EK2 |
C6D40H-EK2 | D | 6xD4000mAh Stick+Cap | 7.2V | 4,000mAh | 20pks/ctn |

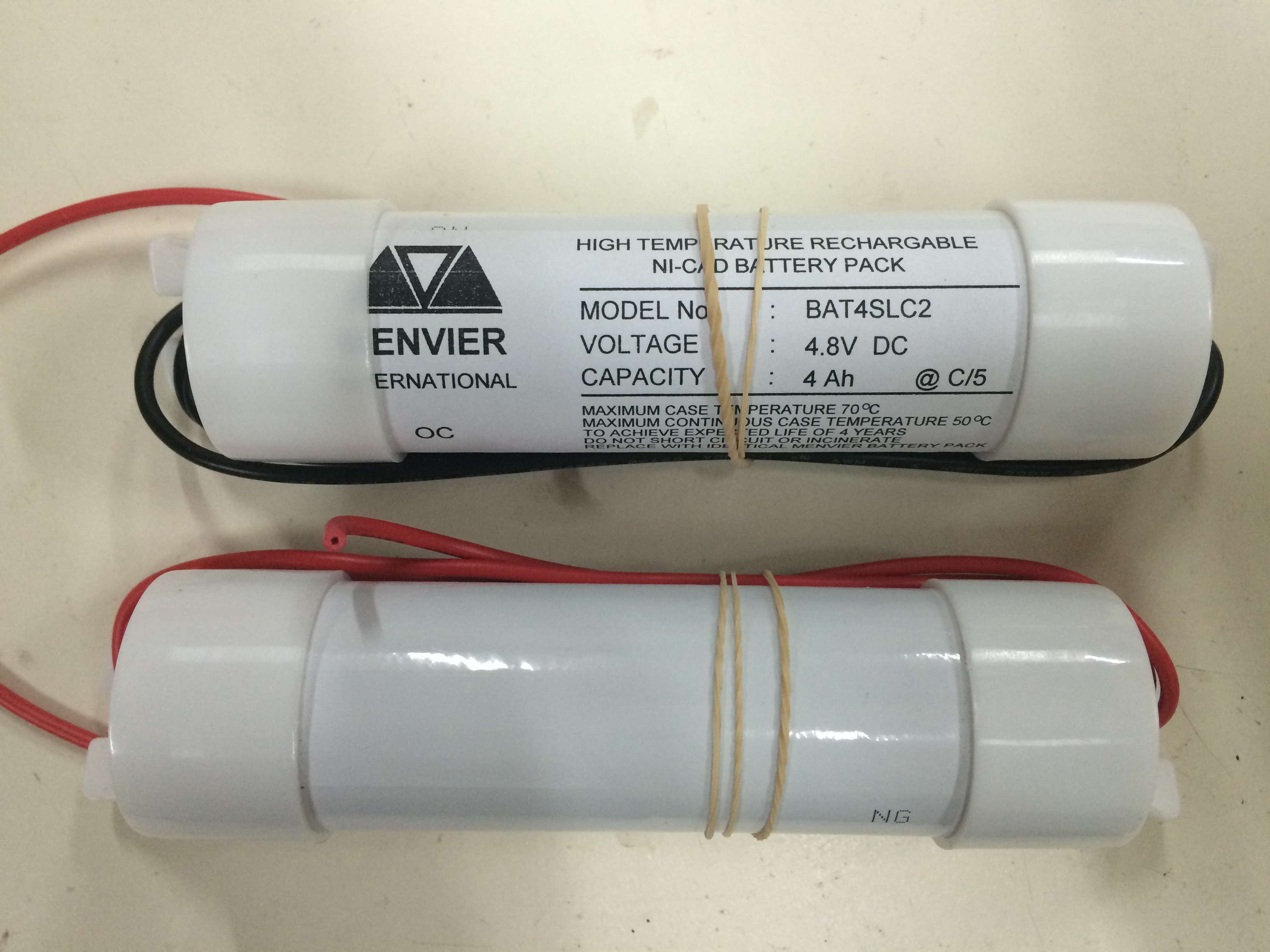

| C4D40H-DK2 |
C4D40H-DK2 | D | 2+2xD4000mAh Stick+Cap | 4.8V | 4,000mAh | 25pks/ctn |

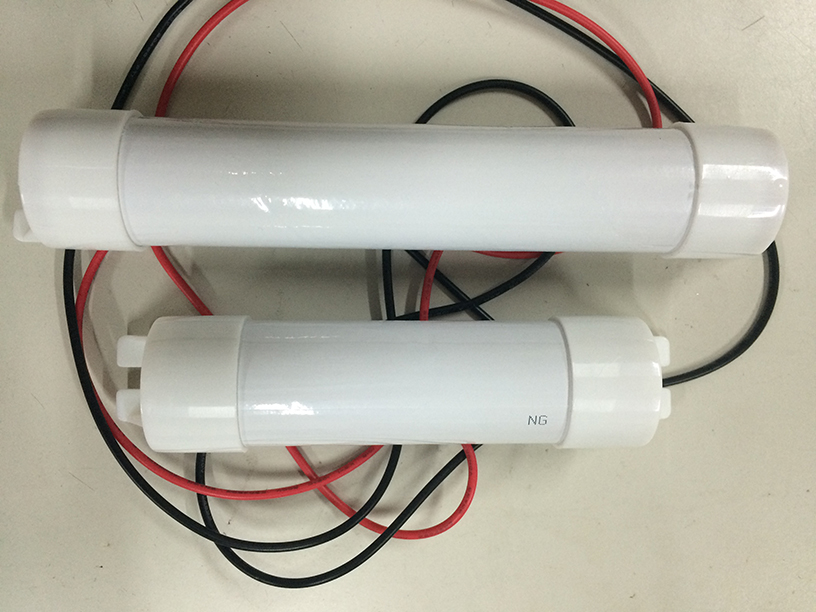

| C5D40H-DK2 |
C5D40H-DK2 | D | 2+3xD4000mAh Stick+Cap | 6.0V | 4,000mAh | 25pks/ctn |
| C6D40H-DK2 |
| D | 3+3xD4000mAh Stick+Cap | 7.2V | 4,000mAh | 20pks/ctn |

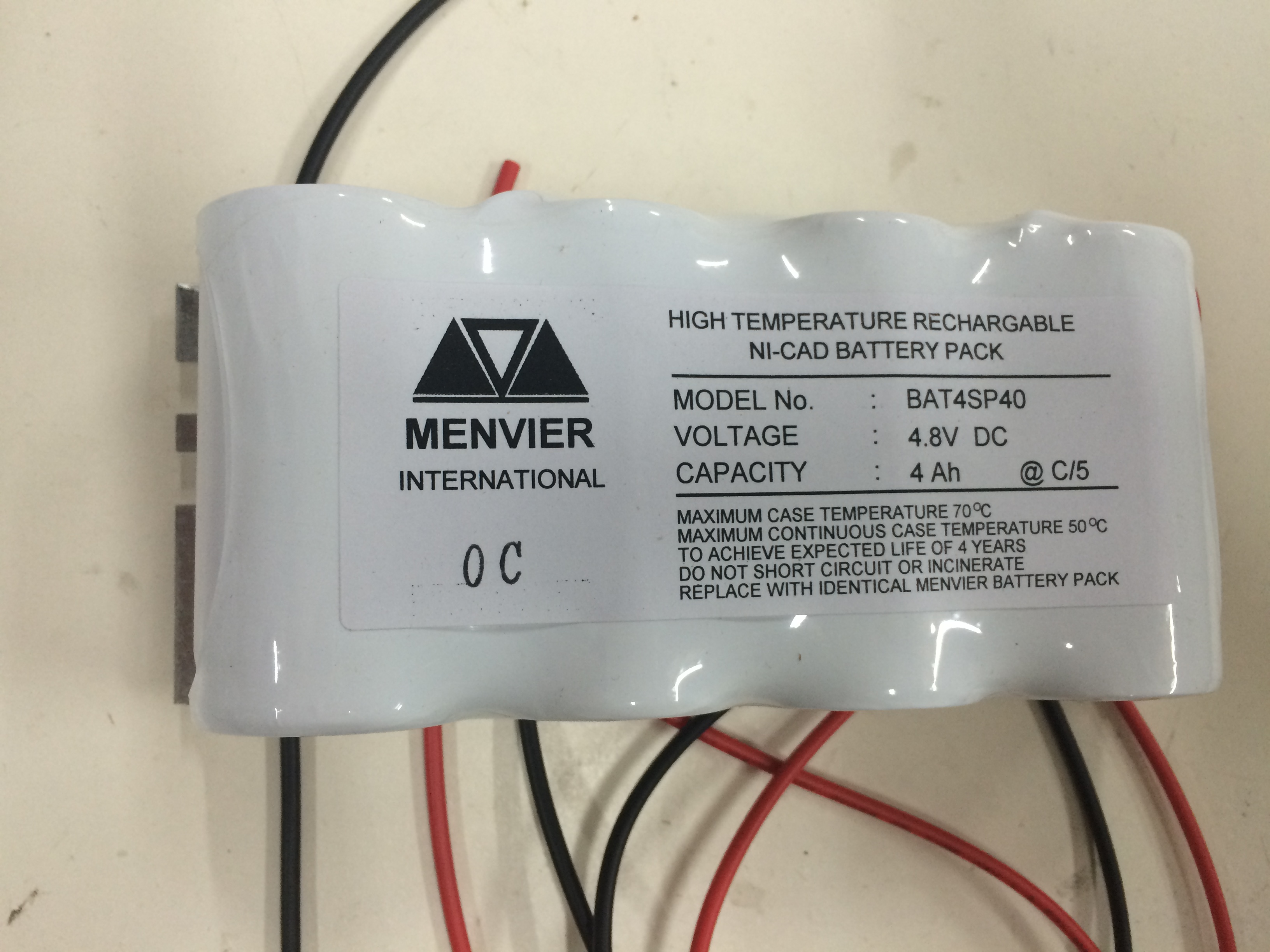

| C4D40H-SB5 |
C4D40H-SB5 | D | 4xD4000mAh S/S+Tray Small | 4.8V | 4,000mAh | 25pks/ctn |

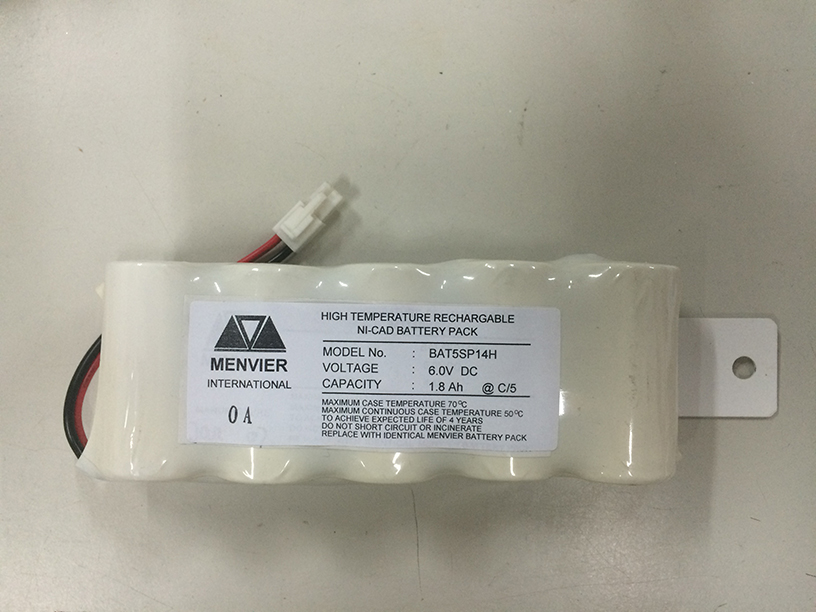

| C5D40H-SC4B6 |
C5D40H-SC4B6 | D | 5xD4000mAh S/S+Plug+Bracket | 6.0V | 4,000mAh | 20pks/ctn |

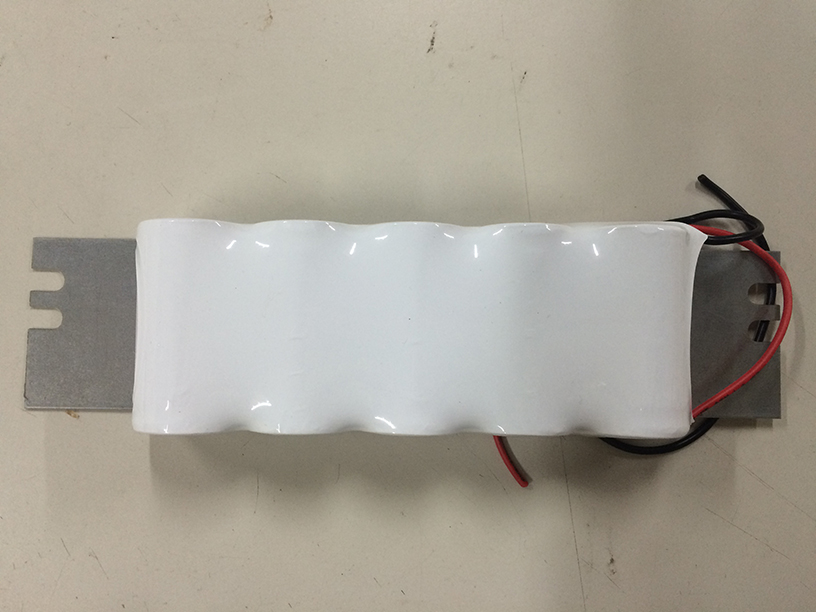

| C5D40H-SB4 |
C5D40H-SB4 | D | 5xD4000mAh S/S+Tray Large | 6.0V | 4,000mAh | 20pks/ctn |
| C4SC18H-BC7 | SC | 2+2xSC1800mAh+Plug | 4.8V | 1,800mAh | 50pks/ctn | |
| C4SC18H-EC7 | SC | 4xSC1800mAh Stick+Plug | 4.8V | 1,800mAh | 50pks/ctn | |

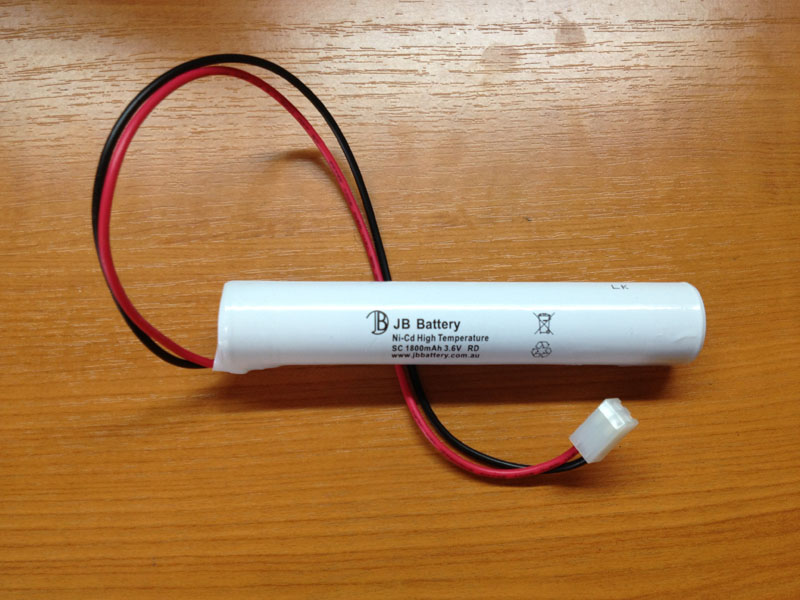

| C3SC18H-EC5 |
C3SC18H-EC5 | SC | 3xSC1800mAh Stick+Plug | 3.6V | 1,800mAh | 100pks/ctn |

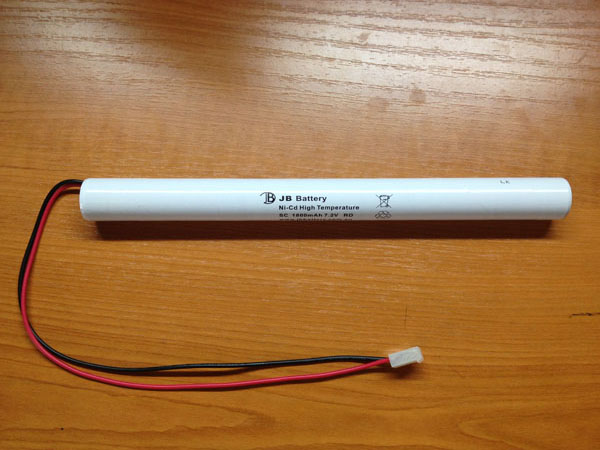

| C6SC18H-EC5 |
C6SC18H-EC5 | SC | 6xSC1800mAh Stick+Plug | 7.2V | 1,800mAh | 50pks/ctn |

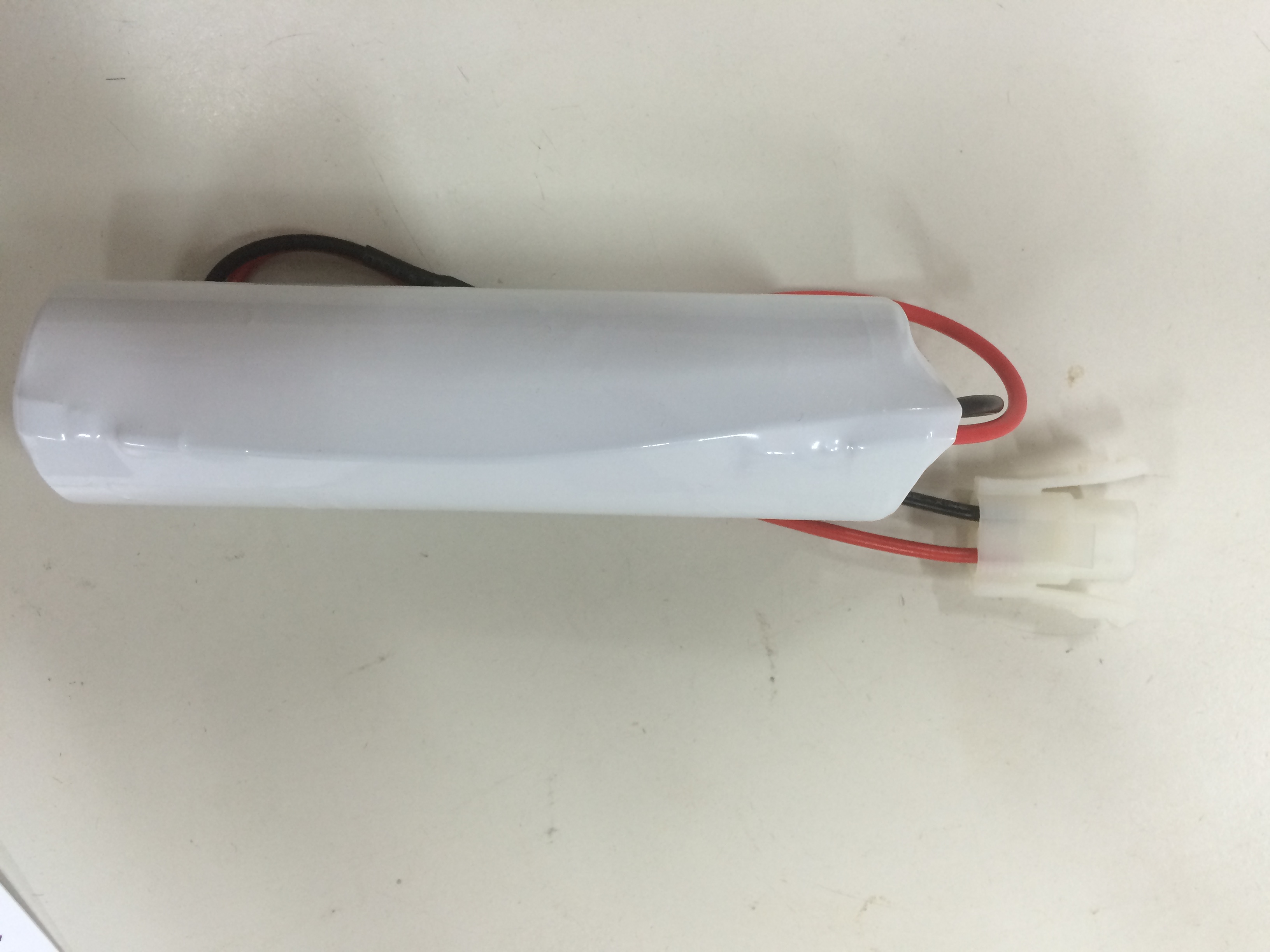

| C2D40H-EC2 |
C2D40H-EC2 | D | 2xD4000mAh Stick+Plug AMP | 2.4V | 4,000mAh | 50pks/ctn |

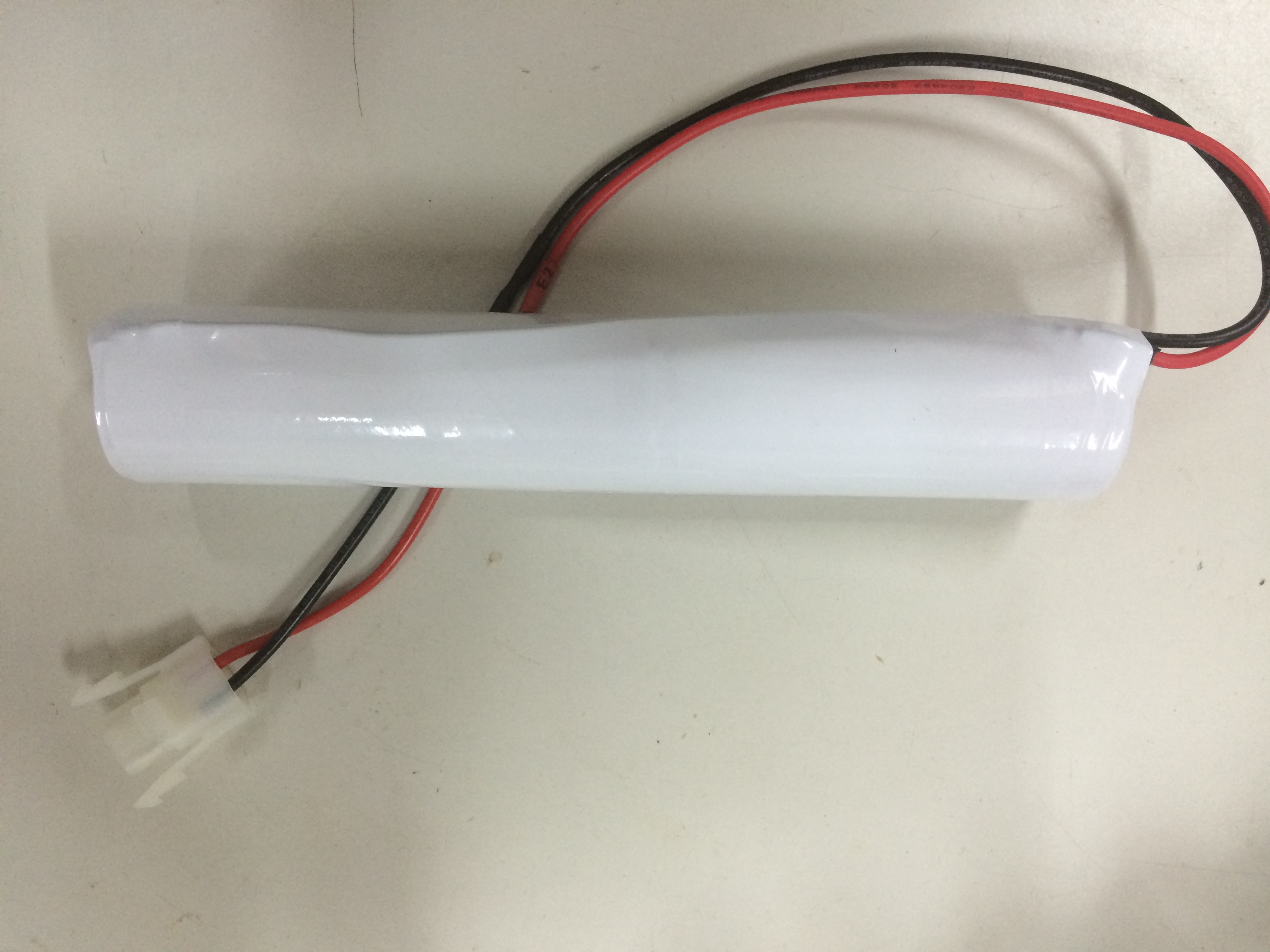

| C3D40H-EC2 |
C3D40H-EC2 | D | 3xD4000mAh Stick+Plug AMP | 3.6V | 4,000mAh | 40pks/ctn |

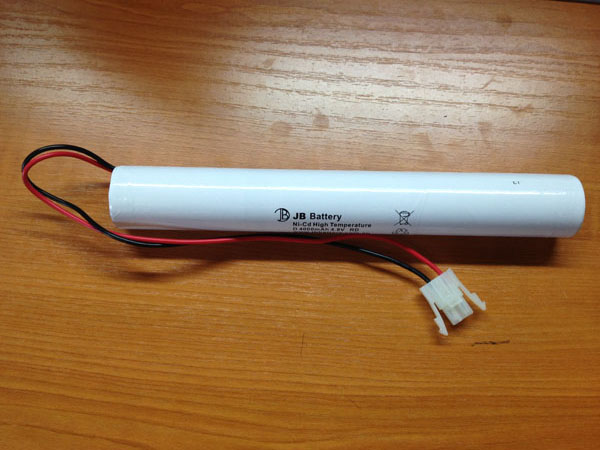

| C4D40H-EC2 |
C4D40H-EC2 | D | 4xD4000mAh Stick+Plug AMP | 4.8V | 4,000mAh | 25pks/ctn |

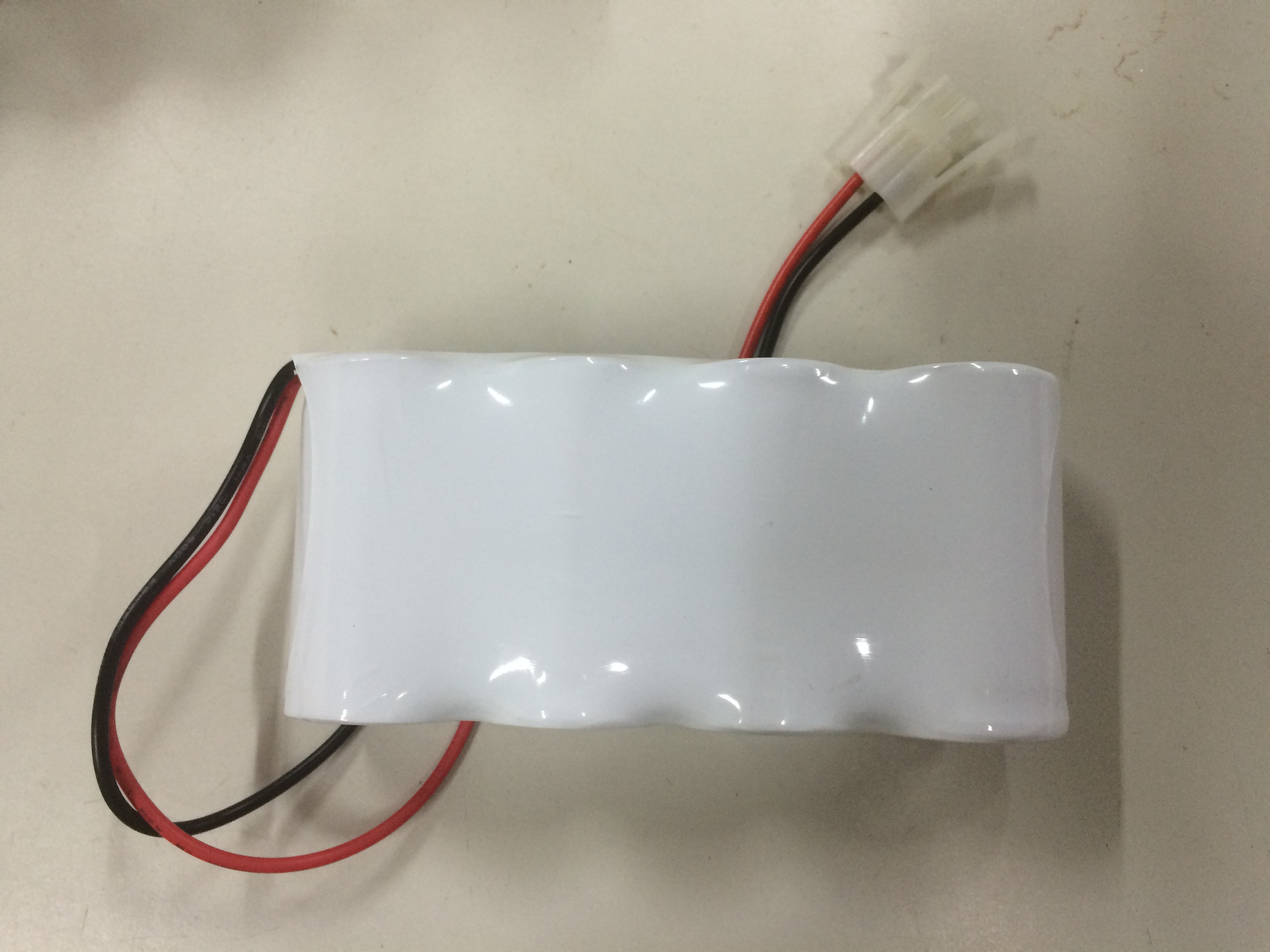

| C4D40H-SC2 |
C4D40H-SC2 | D | 4xD4000mAh S/S+Plug AMP | 4.8V | 4,000mAh | 25pks/ctn |

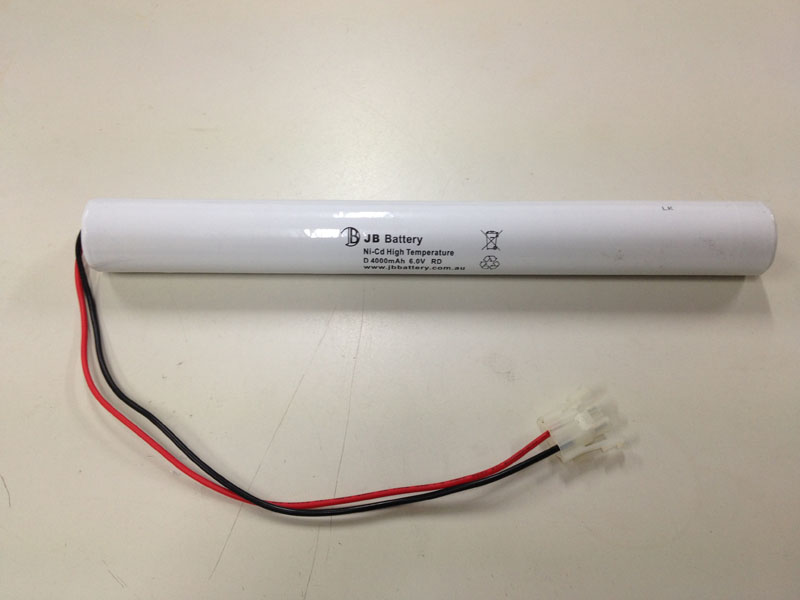

| C5D40H-EC2 |
C5D40H-EC2 | D | 5xD4000mAh Stick+Plug AMP | 6.0V | 4,000mAh | 25pks/ctn |

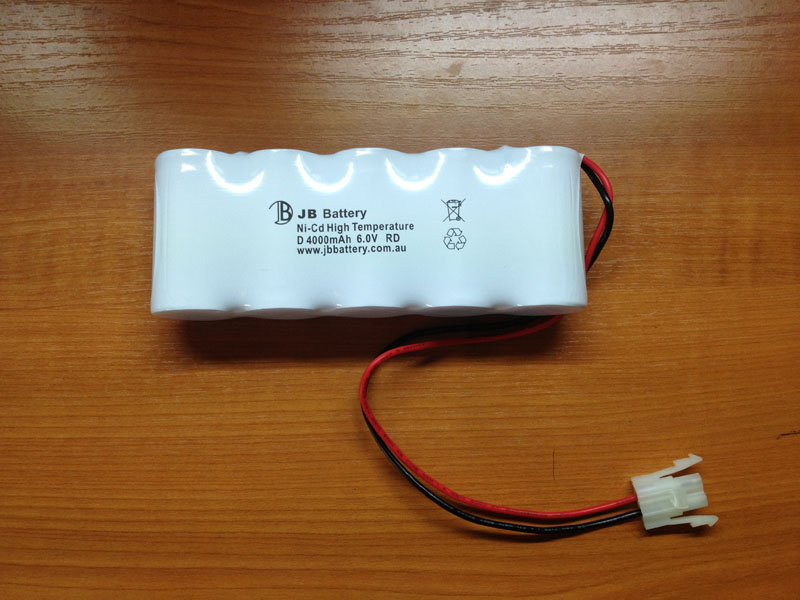

| C5D40H-SC2 |
C5D40H-SC2 | D | 5xD4000mAh S/S+Plug AMP | 6.0V | 4,000mAh | 25pks/ctn |
| C4D40H-C |
| D | 4xD4000mAh Curved | 4.8V | 4,000mAh | 25pks/ctn |

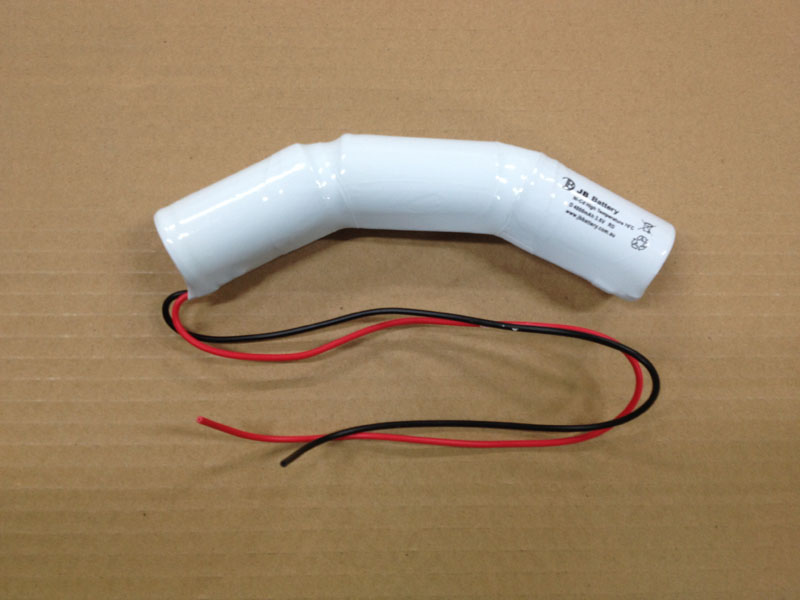

| C3D40H-C |
C3D40H-C | D | 3xD4000mAh Curved | 3.6V | 4,000mAh | 25pks/ctn |

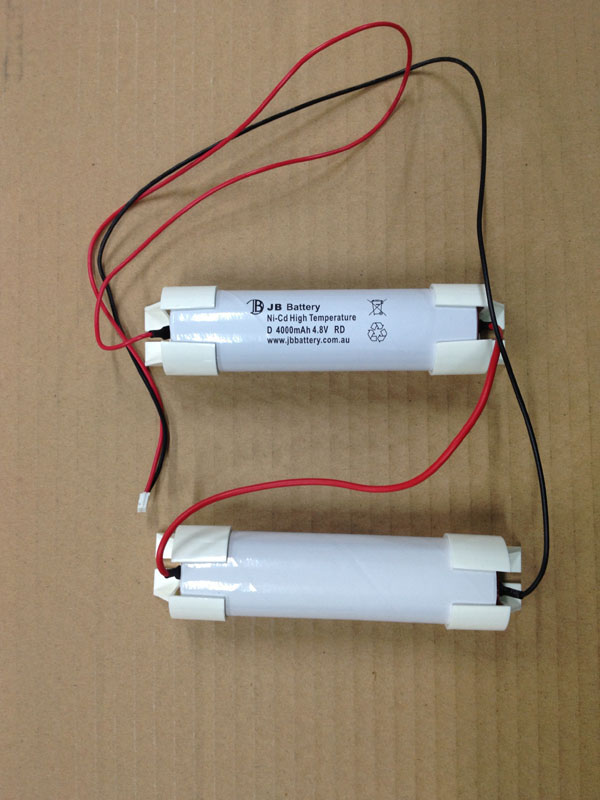

| C4D40H-BC8K1 |
C4D40H-BC8K1 | D | 2+2xD4000mAh Stick+Plug+Cap | 4.8V | 4,000mAh | 25pks/ctn |

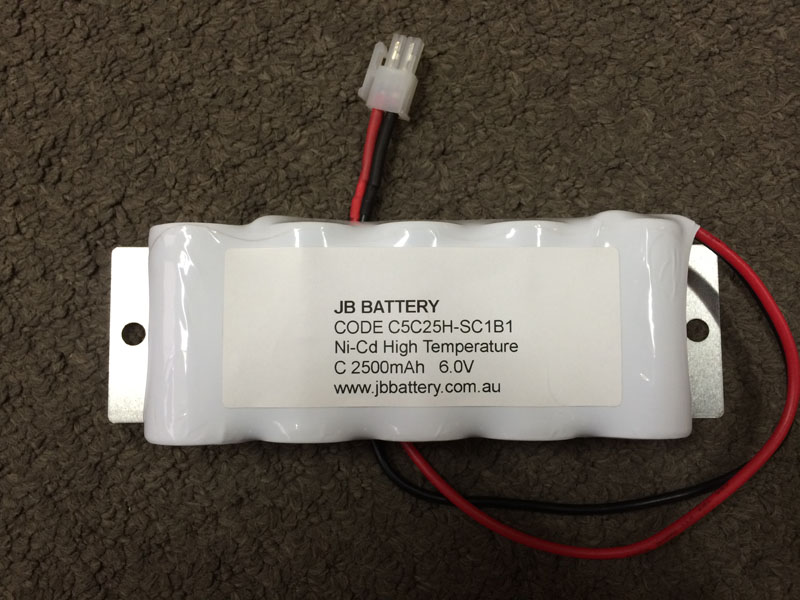

| C5C25H-SC1B1B |
C5C25H-SC1B1B | C | 5xC2500mAh S/S+Plug(B)+Plate | 6.0V | 2,500mAh | 30pks/ctn |

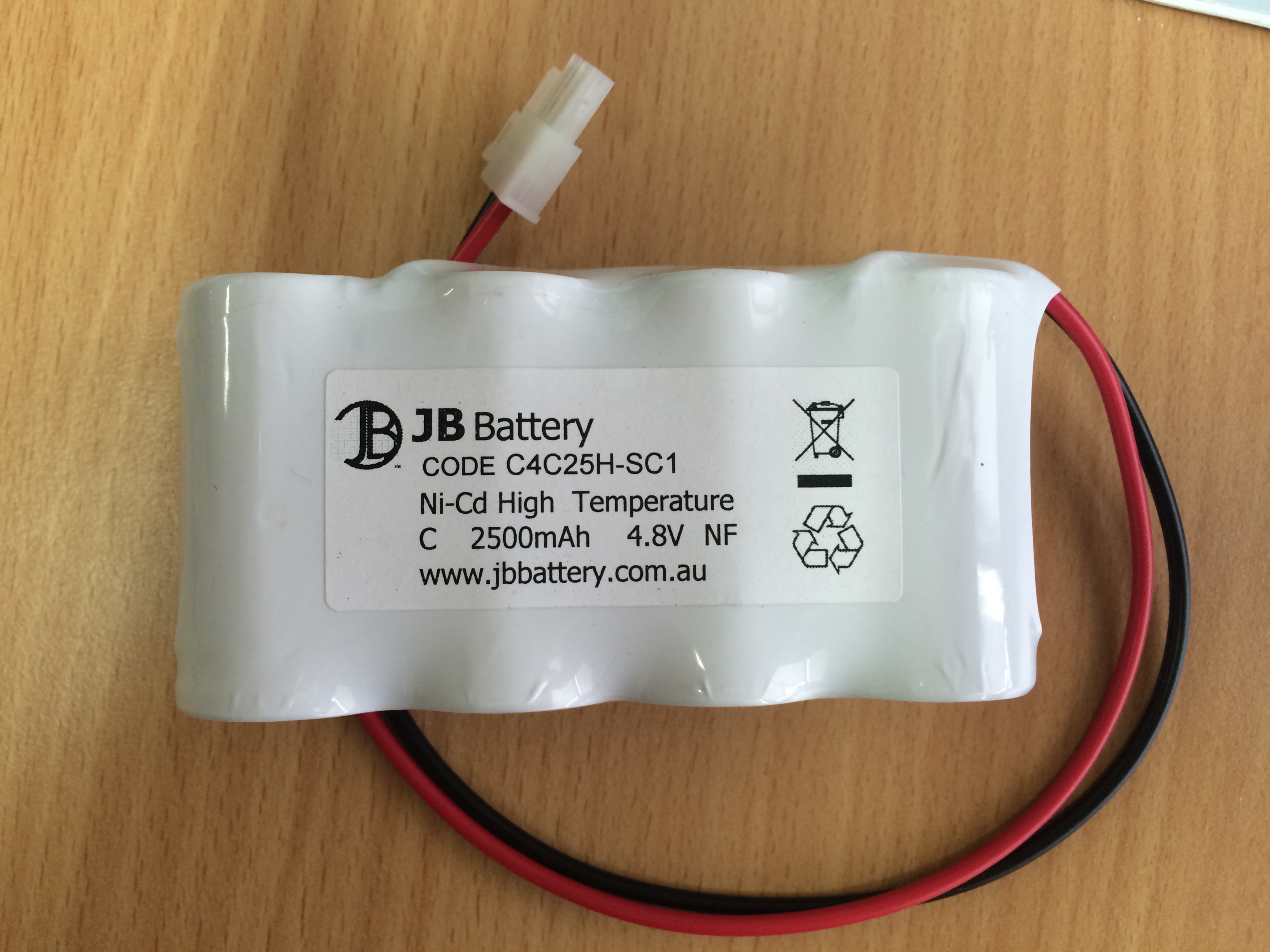

| C4C25H-SC1 |
C4C25H-SC1 | C | 4xC2500mAh S/S+Plug | 4.8V | 2,500mAh | 40pks/ctn |

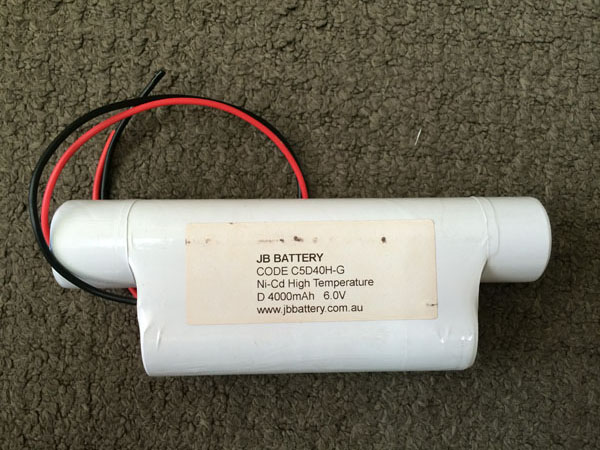

| C5D40H-G |
C5D40H-G | D | 2+3xD4000mAh Stick & S/S | 6.0V | 4,000mAh | 20pks/ctn |
| Standard Temperature Battery Pack Specification Table | ||||||
| Code | Photo | Type | Description | Voltage | Capacity | Packing |

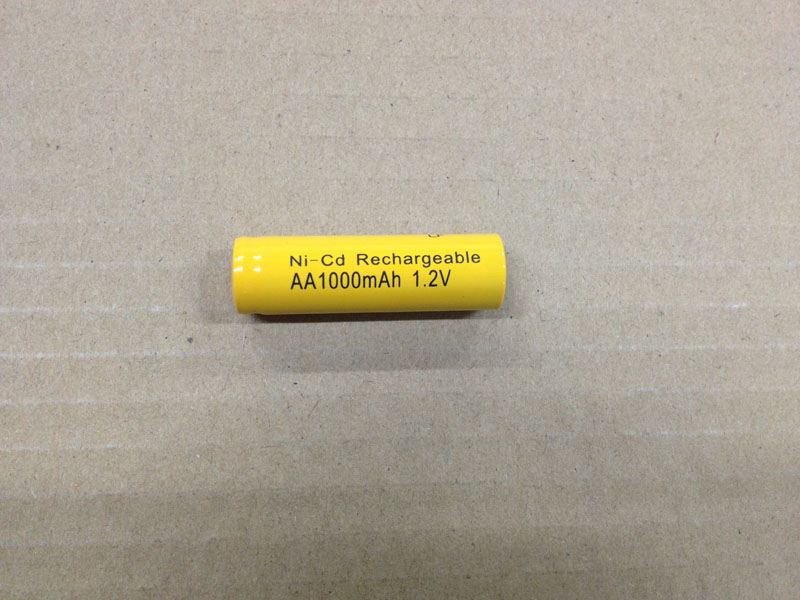

| CAA10 |
CAA10 | AA | Single Cell AA1000mAh | 1.2V | 1,000mAh | 500pcs/ctn |
| C1/2D25 |
| 1/2D | Single Cell 1/2D2500mAh | 1.2V | 2,500mAh | 180pcs/ctm |

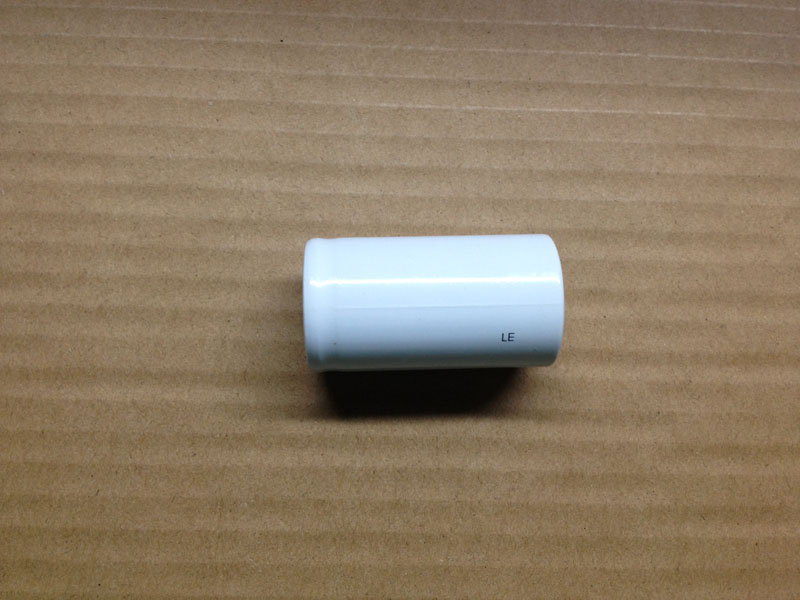

| CD50 |
CD50 | D | Single Cell D5000mAh | 1.2V | 5,000mAh | 100pcs/ctn |

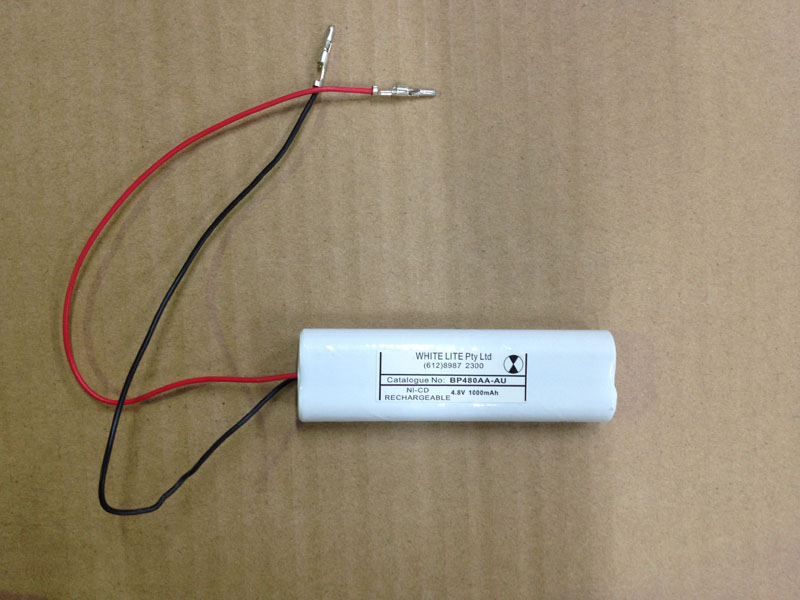

| C4AA10-BC11 |
C4AA10-BC11 | AA | 2x2xAA1000mAh Stick+Plug | 4.8V | 1,000mAh | 100pks/ctn |
| C4D50-EC1B8 |
| D | 4xD5000mAh Stick+Plug+Bracket | 4.8V | 5,000mAh | 25pks/ctn |

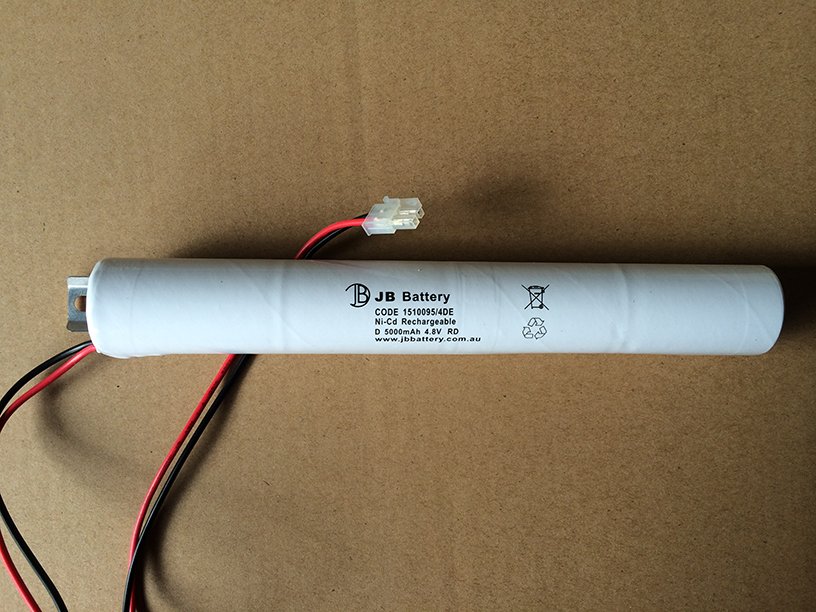

| C4D50-EC1B7 |
C4D50-EC1B7 | D | 5xD5000mAh Stick+Plug+Bracket | 6.0V | 5,000mAh | 25pks/ctn |
| Single Cell Specification Table | ||||||||
| Battery Type | IEC Model | General Model | Nominal Capacity (mAh) | Nominal Voltage (V) | Dimension (mm) | |||
| Diameter | Height | Cap Dia. | ||||||
| Common Type (middle rate, fast charge) | KRMR | 11/43 | AAA | 350mAh | 1.2V | 10.5 | 42.5 | 5.1 |
| KRMR | 11/43 | AAA | 400mAh | 1.2V | 10.5 | 42.5 | 5.1 | |
| KRMR | 15/29 | AA | 450mAh | 1.2V | 14.5 | 48 | 8 | |
| KRMR | 15/29 | AA | 600mAh | 1.2V | 14.5 | 48 | 8 | |
| KRMR | 15/29 | AA | 700mAh | 1.2V | 14.5 | 48 | 8 | |
| KRMR | 15/49 | AA | 800mAh | 1.2V | 14.5 | 48 | 8 | |
| KRMR | 15/49 | AA | 900mAh | 1.2V | 14.5 | 48 | 8 | |
| KRMR | 15/49 | AA | 1000mAh | 1.2V | 14.5 | 48 | 8 | |
| KRMR | 17/50 | A | 1500mAh | 1.2V | 17 | 42 | 7 | |
| KRMR | 23/43 | SC | 1300mAh | 1.2V | 23 | 42 | 10 | |
| KRMR | 23/43 | SC | 1500mAh | 1.2V | 23 | 42 | 10 | |
| KRMR | 23/43 | SC | 1800mAh | 1.2V | 23 | 42 | 10 | |
| KRMR | 23/43 | SC | 2000mAh | 1.2V | 23 | 42 | 10 | |
| KRMR | 26/50 | C | 2500mAh | 1.2V | 25.8 | 49 | 10 | |
| KRMR | 26/50 | C | 3000mAh | 1.2V | 25.8 | 49 | 10 | |
| KRMR | 33/60 | D | 4000mAh | 1.2V | 33 | 59 | 10 | |
| KRMR | 33/60 | D | 4500mAh | 1.2V | 33 | 59 | 10 | |
| KRMR | 33/60 | D | 5000mAh | 1.2V | 33 | 59 | 10 | |
| KRMR | 33/60 | F | 8000mAh | 1.2V | 23 | 89 | 10 | |
| Super high rate, Fast charge | KRHR | 23/43 | SC | 1500mAh | 1.2V | 23 | 42 | 10 |
| KRHR | 23/43 | SC | 1800mAh | 1.2V | 23 | 42 | 10 | |
| KRHR | 26/50 | C | 3000mAh | 1.2V | 25.8 | 49 | 10 | |
| KRHR | 33/60 | D | 5000mAh | 1.2V | 33 | 59 | 10 | |
| High Temperature (E40) | KRMT | 15/49 | AA | 800mAh | 1.2V | 14.5 | 42 | 8 |
| KRMT | 23/43 | SC | 1500mAh | 1.2V | 23 | 49 | 10 | |
| KRMT | 23/43 | SC | 1800mAh | 1.2V | 23 | 49 | 10 | |
| KRMT | 26/50 | C | 2300mAh | 1.2V | 25.8 | 59 | 10 | |
| KRMT | 26/50 | C | 2500mAh | 1.2V | 25.8 | 59 | 10 | |
| KRMT | 33/60 | D | 4000mAh | 1.2V | 33 | 48 | 10 | |
| KRMT | 33/60 | D | 5000mAh | 1.2V | 25.8 | 49 | 10 | |
| High Temperature (E55) | KRMU | 15/49 | AA | 800mAh | 1.2V | 14.5 | 48 | 4.8 |
| KRMU | 23/43 | SC | 1500mAh | 1.2V | 23 | 49 | 4.7 | |
| KRMU | 23/43 | SC | 1800mAh | 1.2V | 23 | 50 | 4.8 | |
| KRMU | 26/50 | C | 2300mAh | 1.2V | 25.8 | 49 | 10 | |
| KRMU | 26/50 | C | 2500mAh | 1.2V | 25.8 | 49 | 10 | |
| KRMU | 33/60 | D | 4000mAh | 1.2V | 33 | 59 | 10 | |
| KRMU | 33/60 | D | 5000mAh | 1.2V | 33 | 59 | 10 | |
| KRMU | 33/90 | F | 7000mAh | 1.2V | 33 | 59 | 10 | |
