Plugs/Brackets/Caps

Catalog for download – coming soon.

Plug
Code Type Description

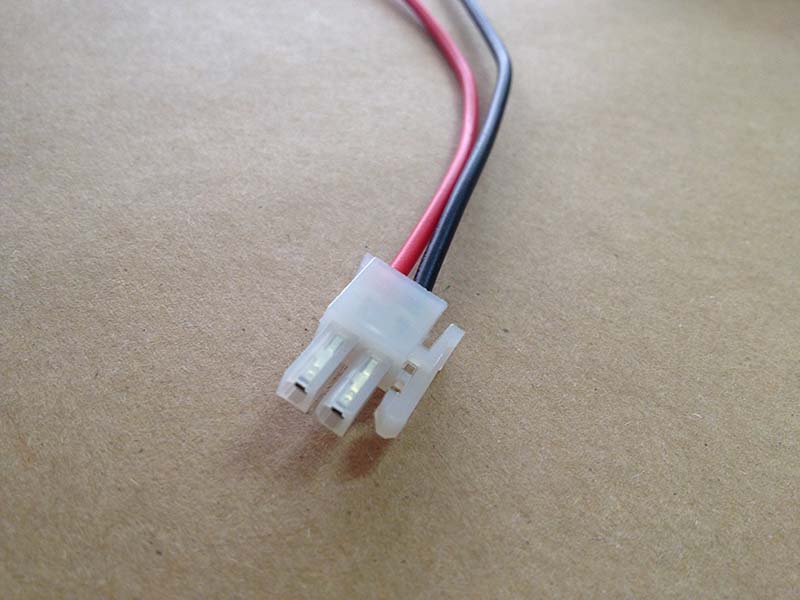

C1 C1

Molex5557 1015 20# AWG (Also in 22# AWG)

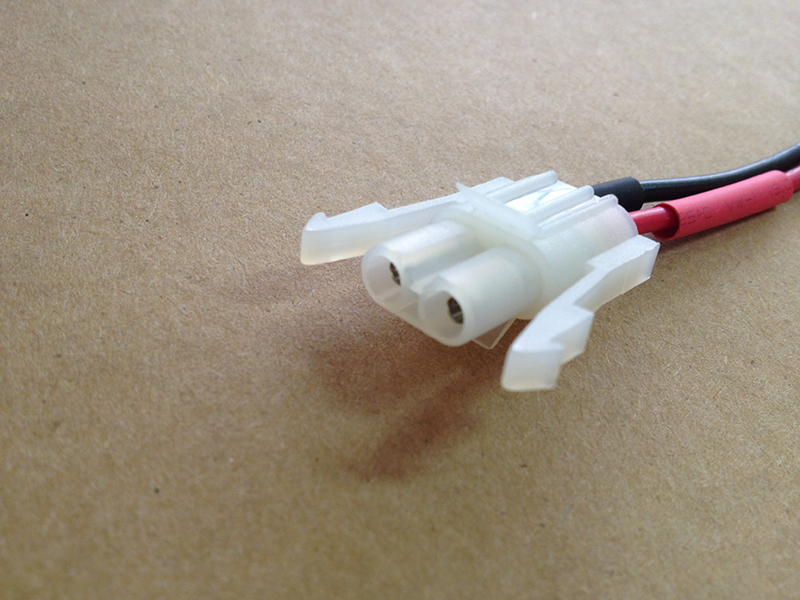

C2 C2

AMP10 1015 20# AWG

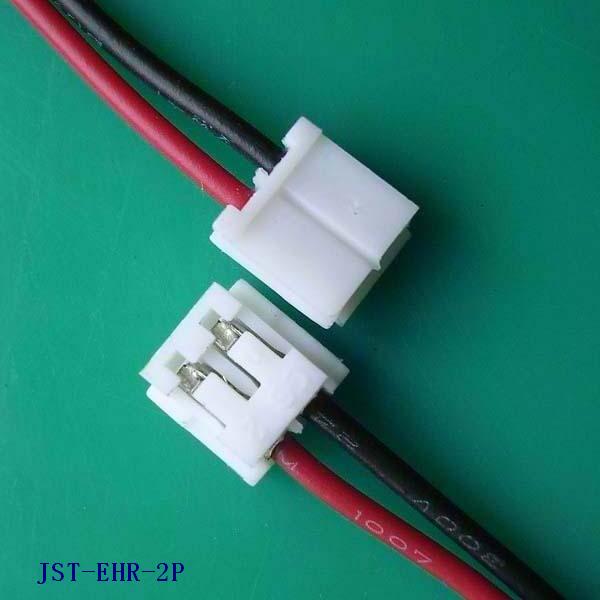

C3 C3

JST-EHR-2P 1007 20# AWG

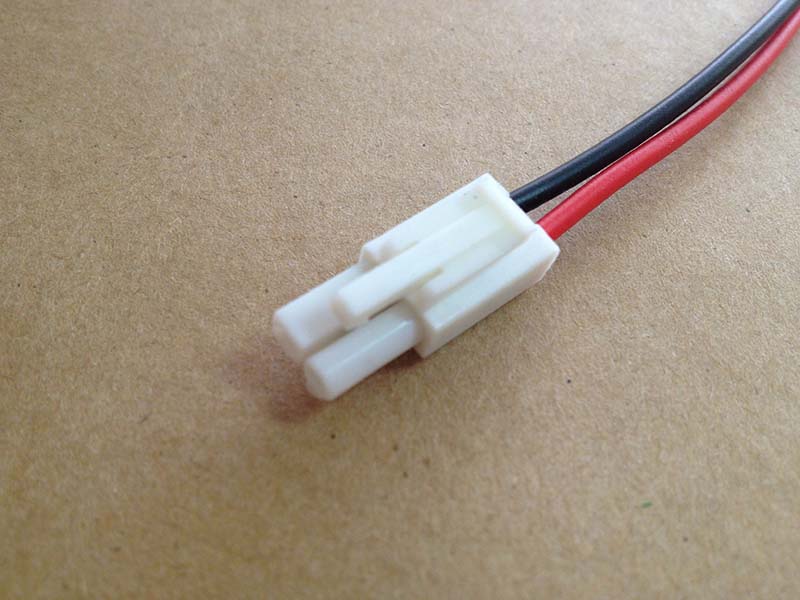

C4 C4

JST-ELP-P2 1015 20# AWG

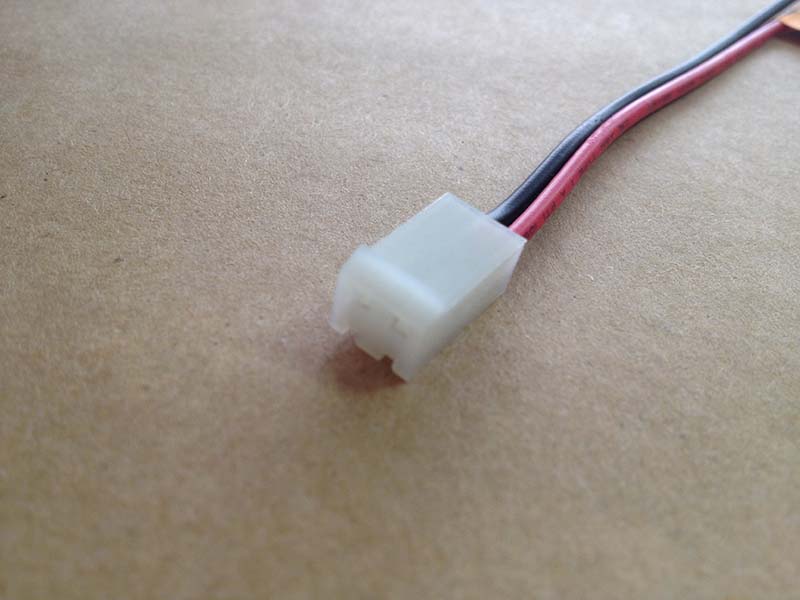

C5 C5

Molex2139(HX-5058) 1015 22#AWG

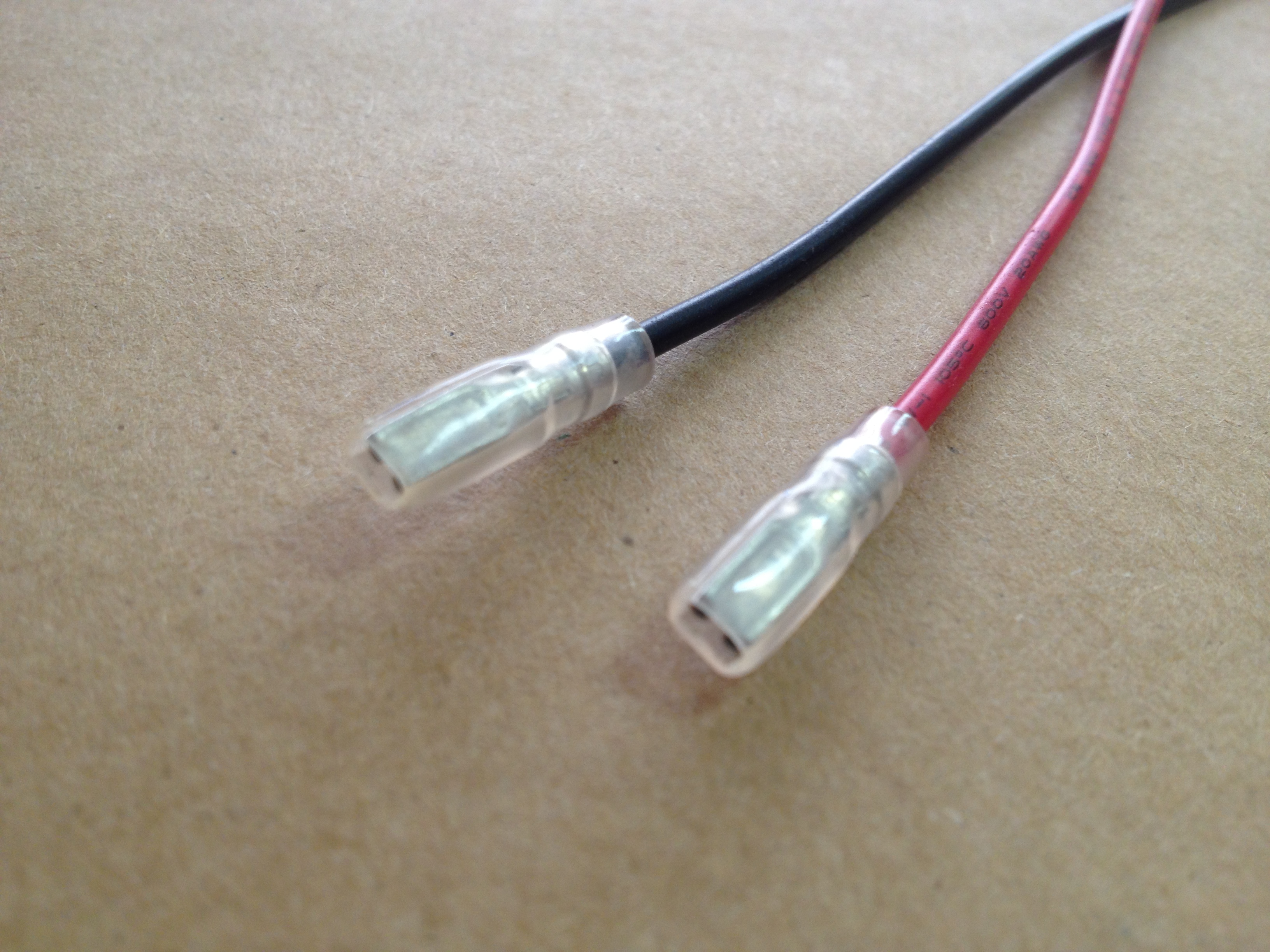

C6 C6

Spade110 1015 20# AWG (Also in 22# AWG)

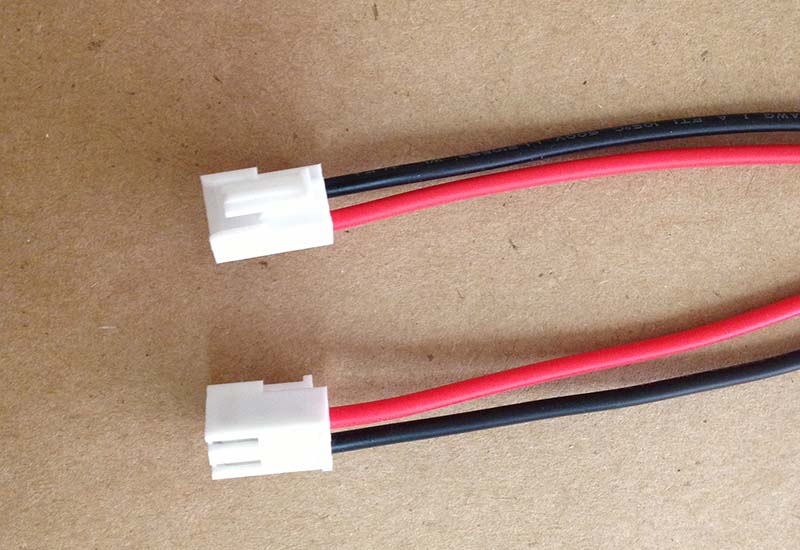

C7 C7

JST-VHR-2P

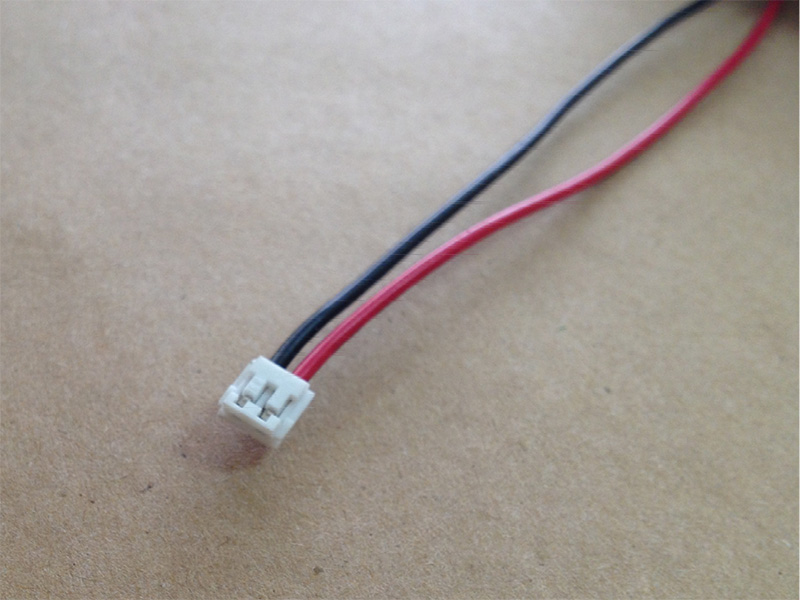

C8 C8

JST-EHR-2P

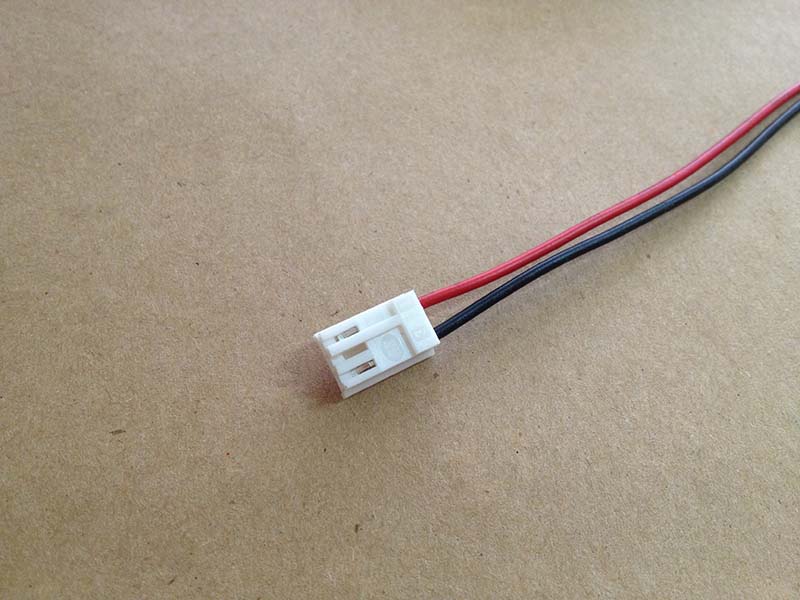

C9 C9

JWTA 2544-3P

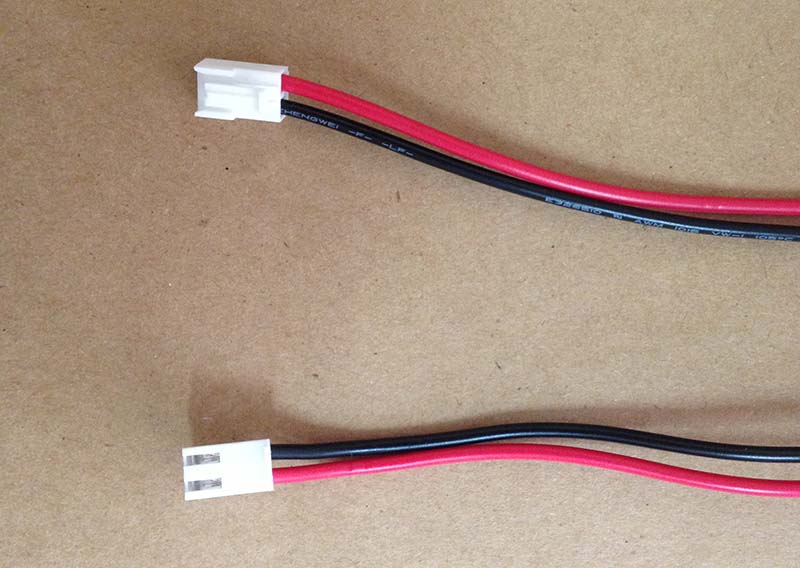

C10 C10

JST-VHR-2P1B

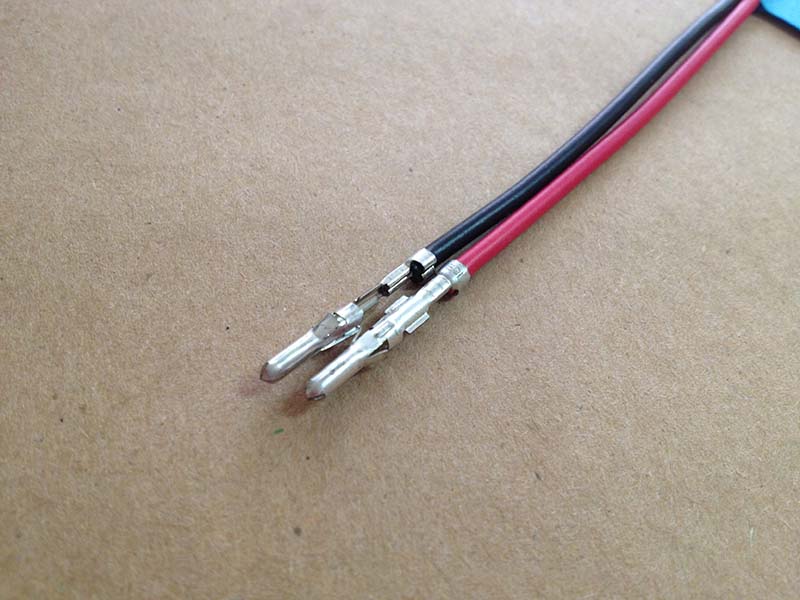

C11 C11

Connector mainly for White Lite Products

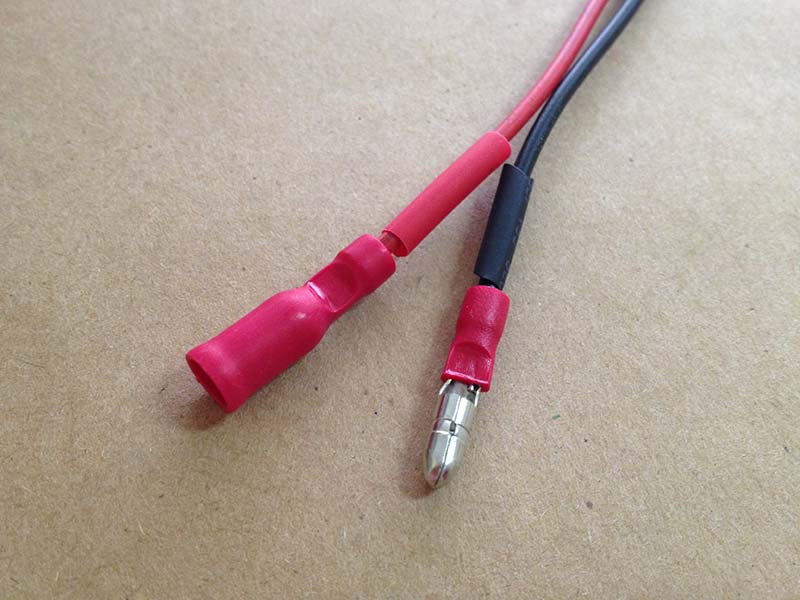

C12 C12

BULLET HEAD

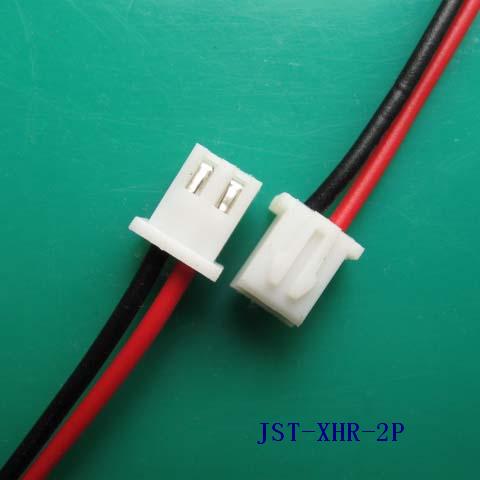

C26 C26

JST-XHR-2P

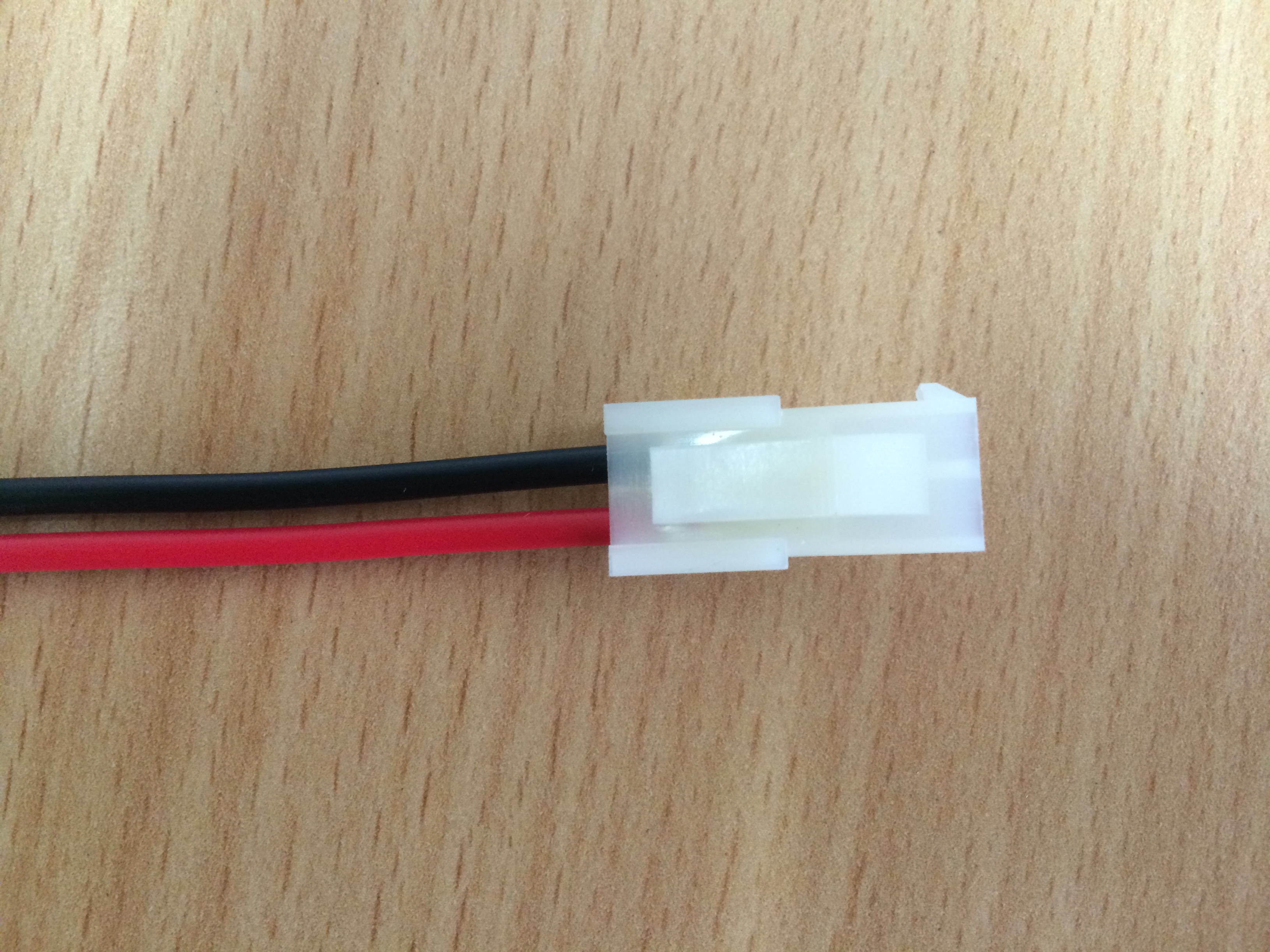

C28 C28

Molex 5557-2P-Female

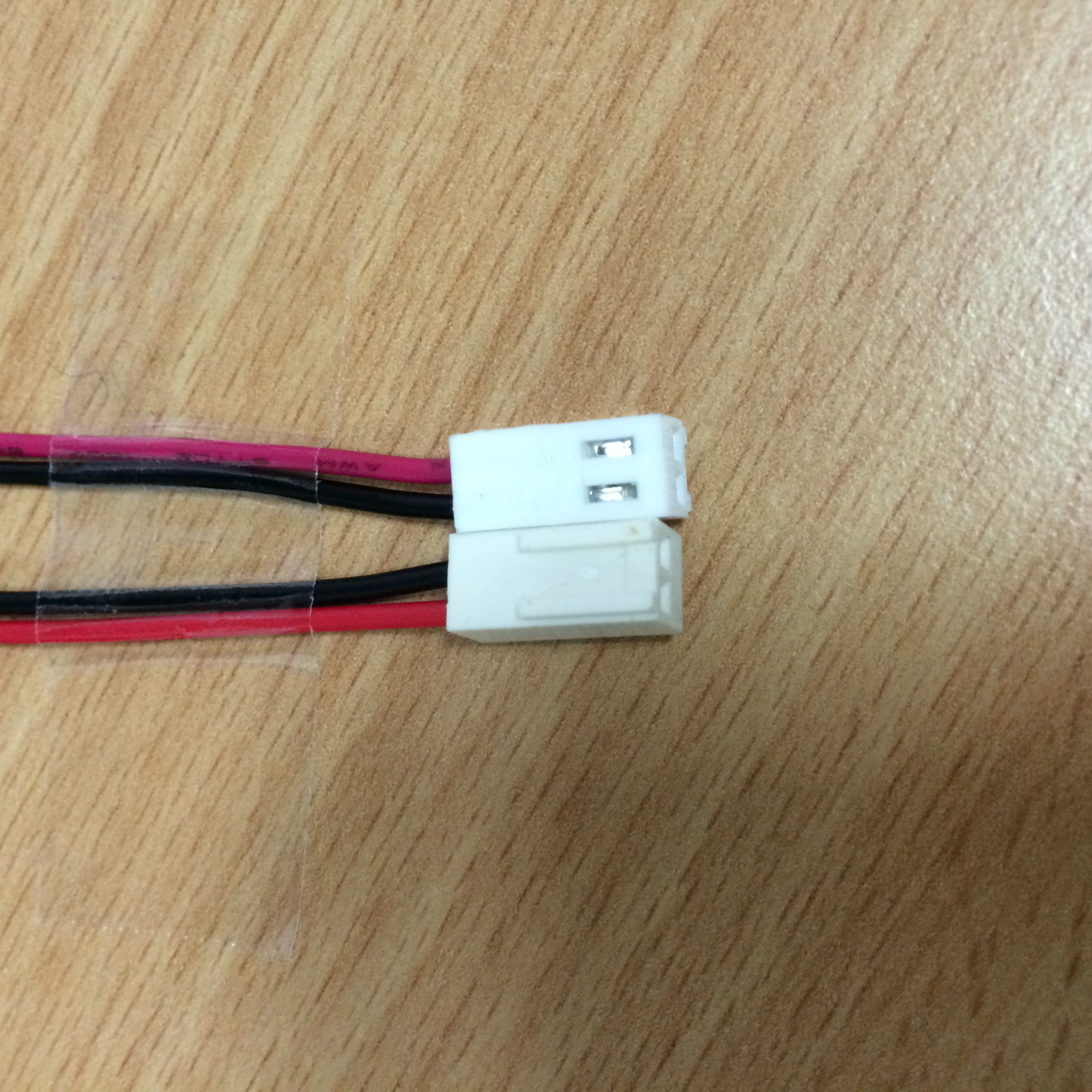

C30 C30

Molex 2510-2P

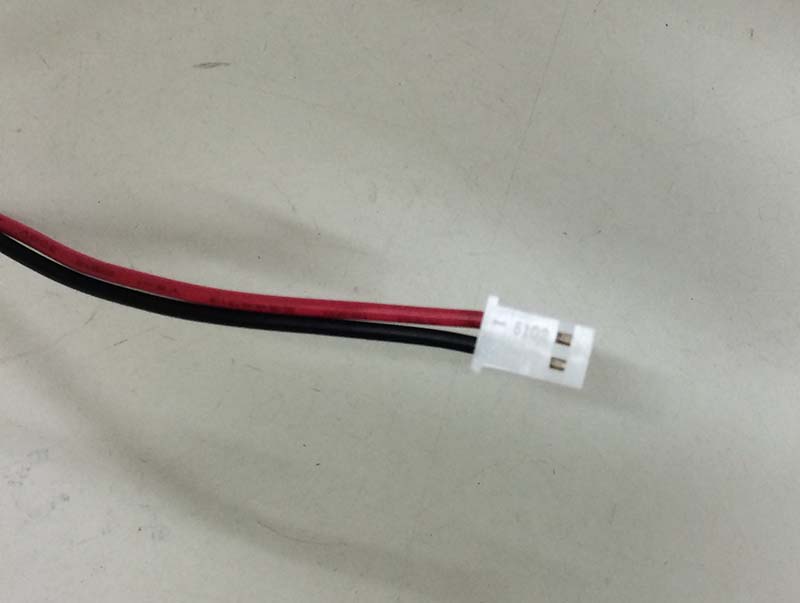

C31 C31

Molex 5102-2P

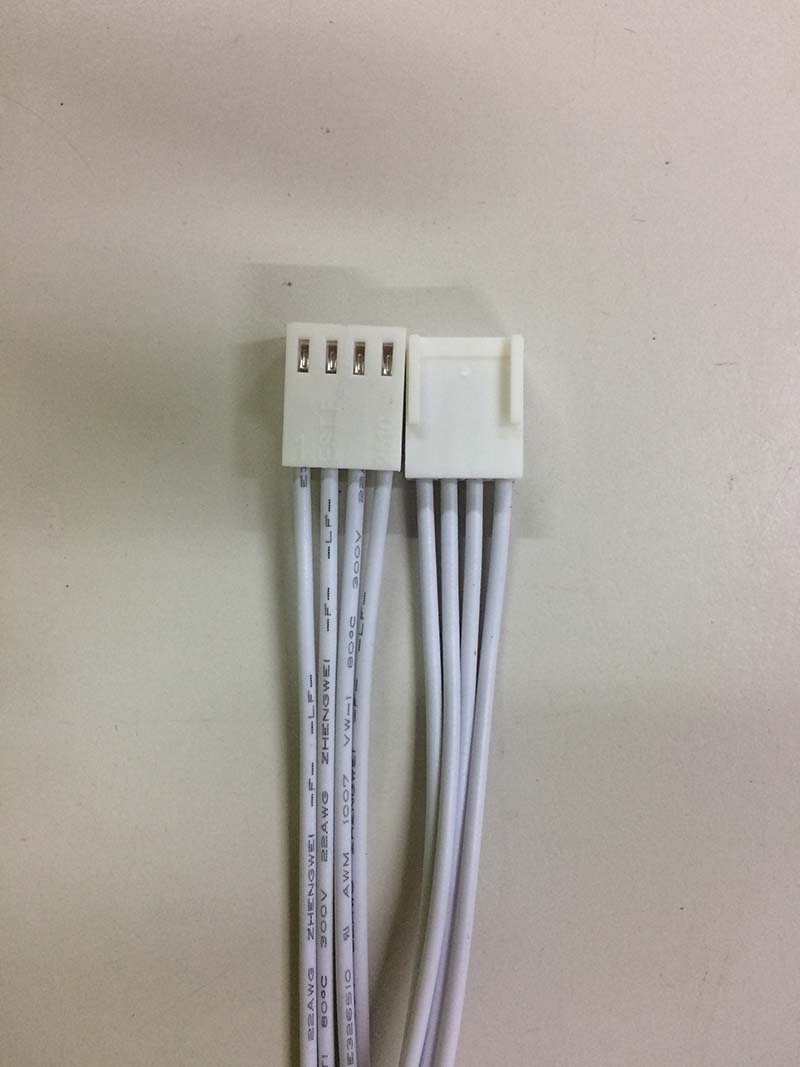

C36 C36

Molex 2510-4P
Bracket
Code Type Desciption
B1 B1

45mm x1 57mm, dual hole

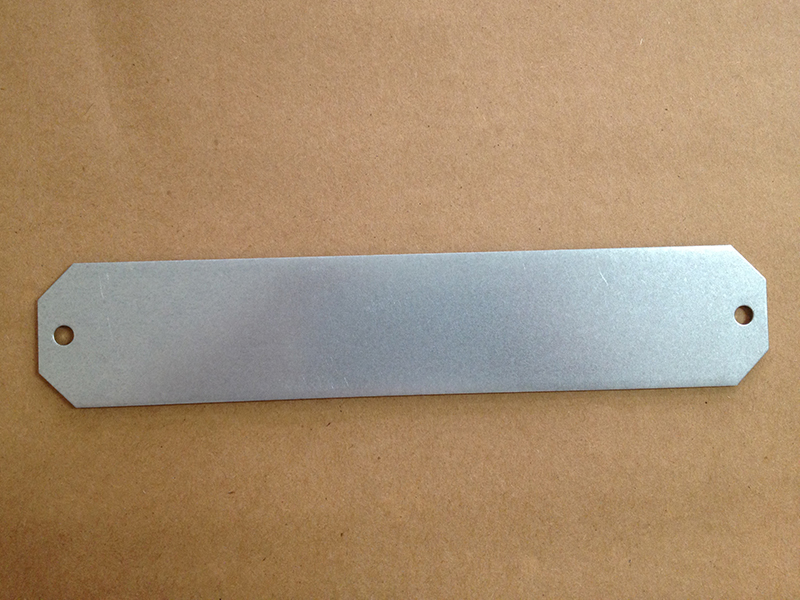

B2 B2

20mm x 205mm for 1510180
B3 B3

40mm x 160mm for 1510420
B4 B4

54mm X 240mm

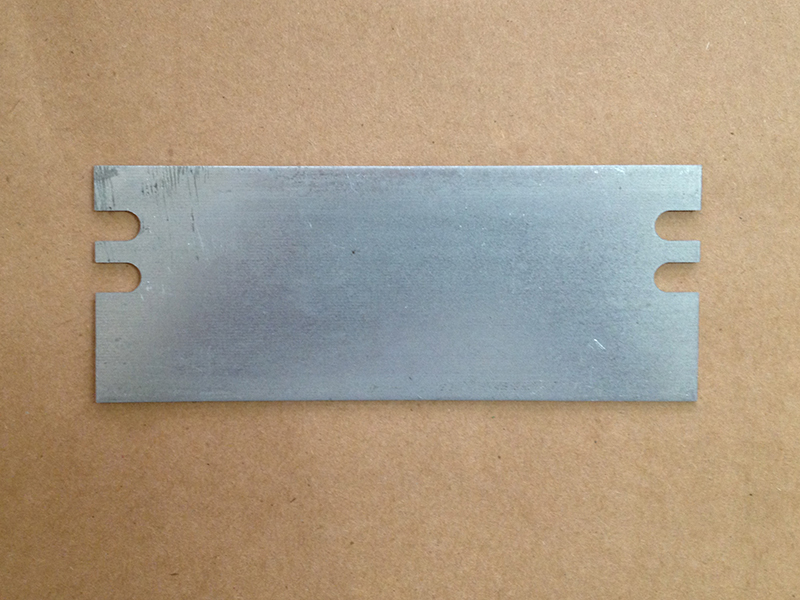

B5 B5

54mm X 140mm

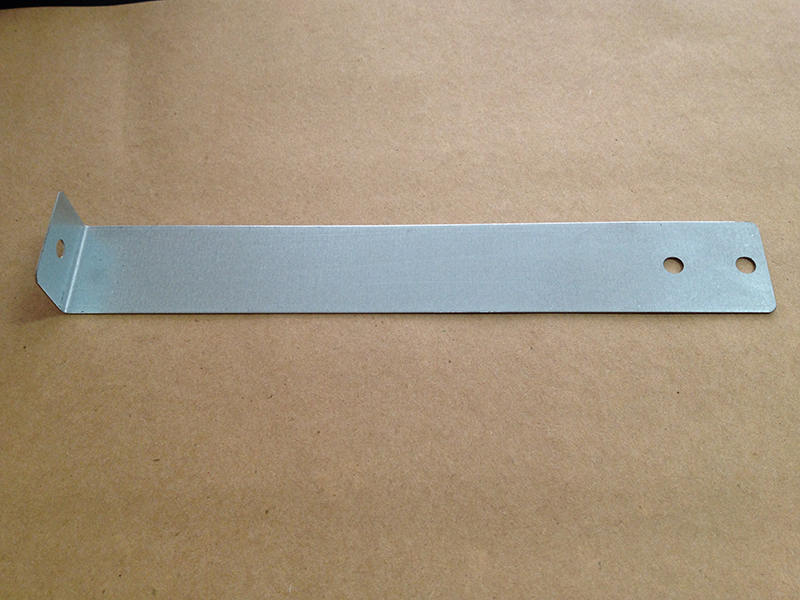

B6 B6

30mm x 200mm + 20mm side

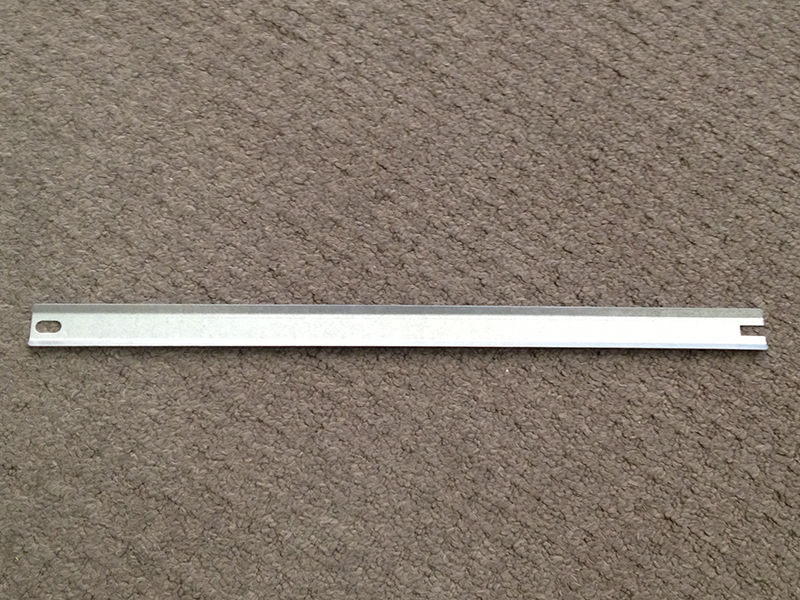

B7 B7

20mm x 350mm
B8 B8

20mm x 270mm

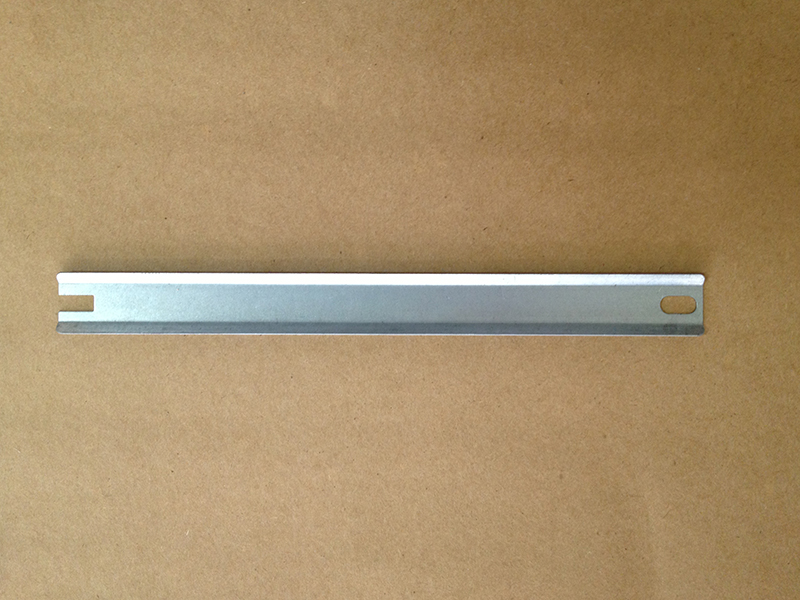

B9 B9

20mm x 215mm

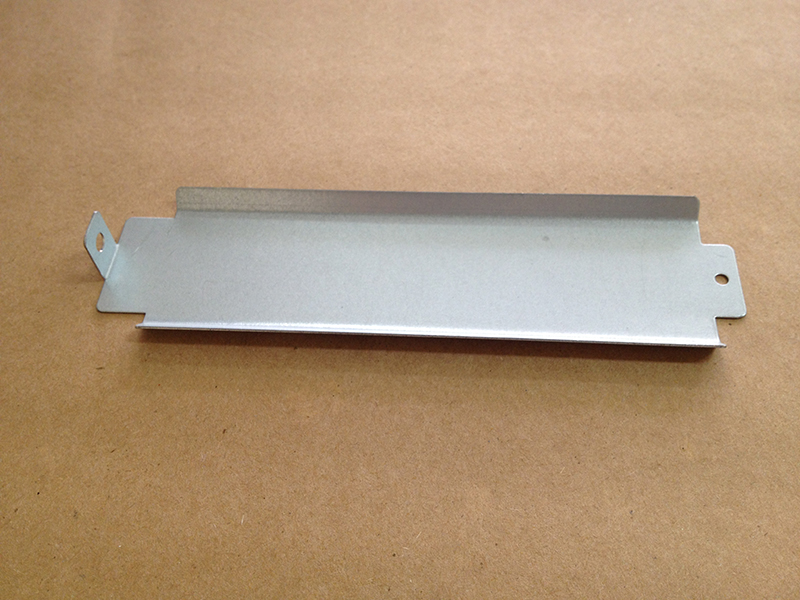

B10 B10

41mm x 145mm

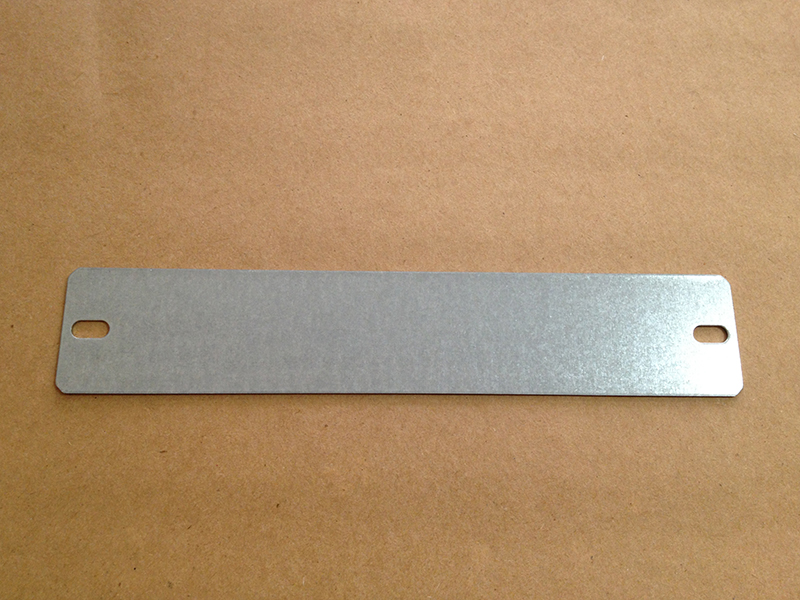

B11 B11

185mm x 35mm

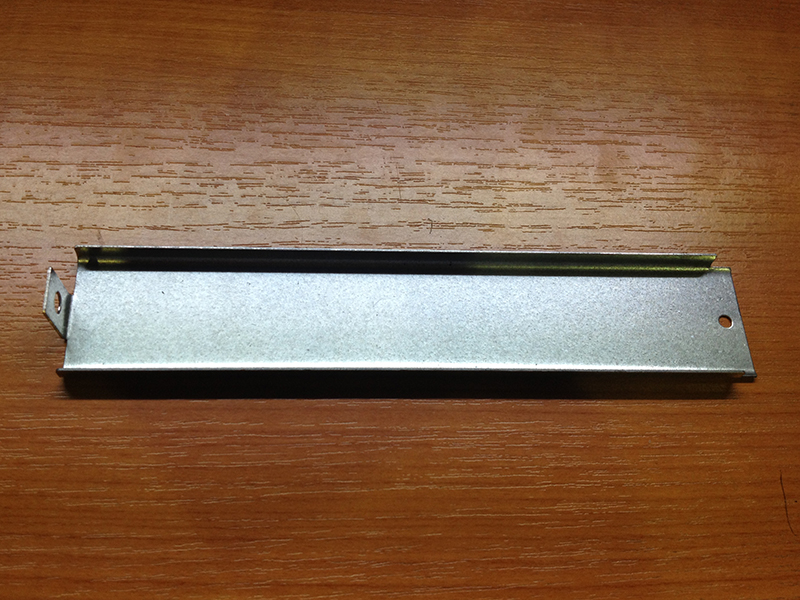

B12 B12

28mm x 145mm
B13 B13

21mm x 165mm
Caps
Code Type Desciption
K1 k1

D Cell cap for Stick Packs

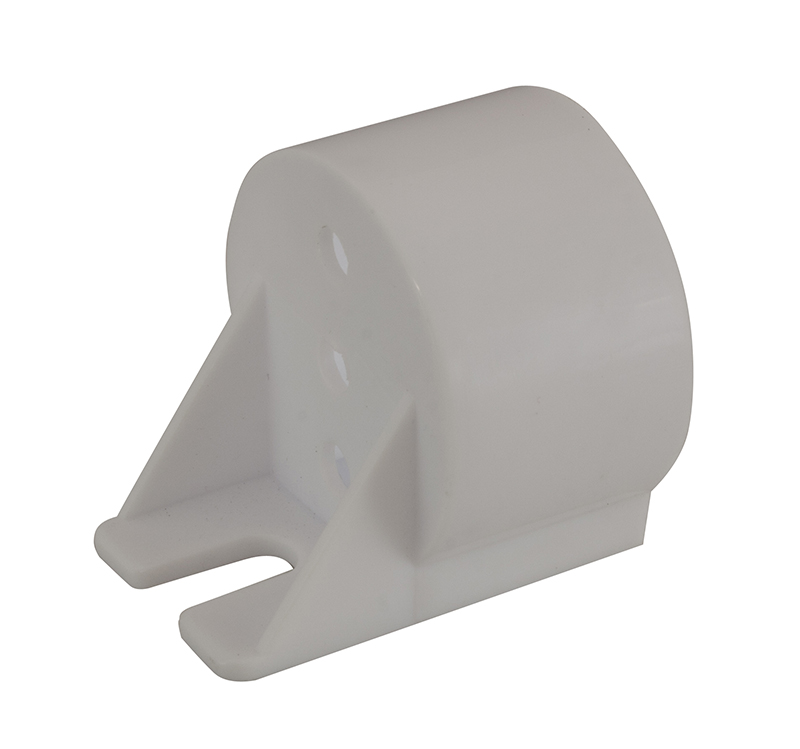

K2 k2

D Cell cap for Stick Packs

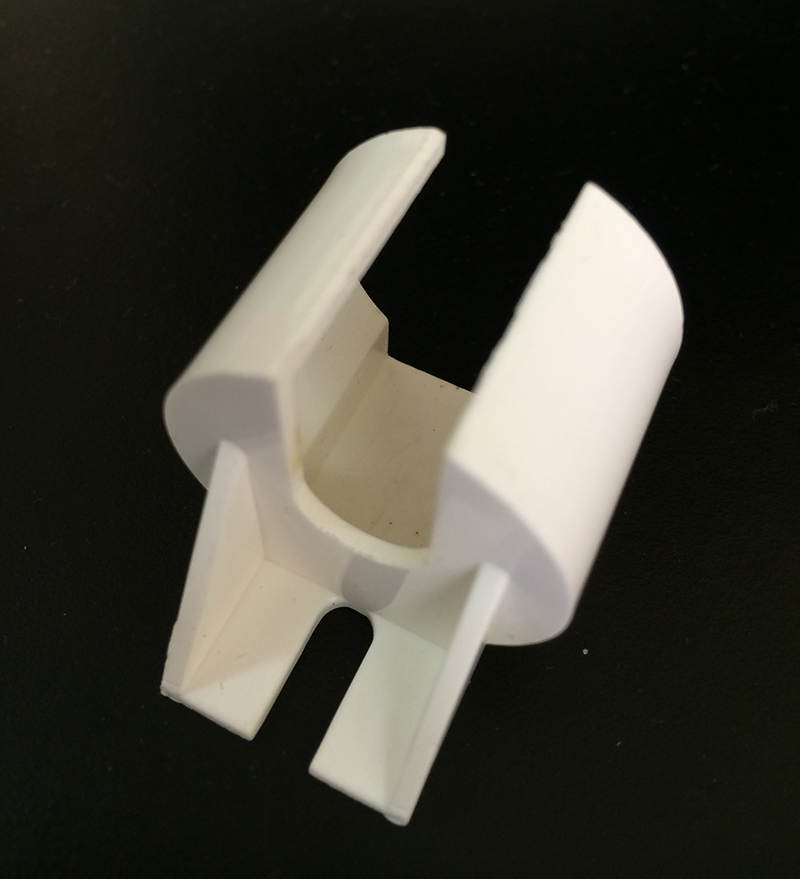

K3 k3

C Cell cap for Stick Packs
